Allied Moulded Products RD-42V Rng/Dryer Vapor Box 42.0 Cu. In. Angled Mid Nails

Product Description

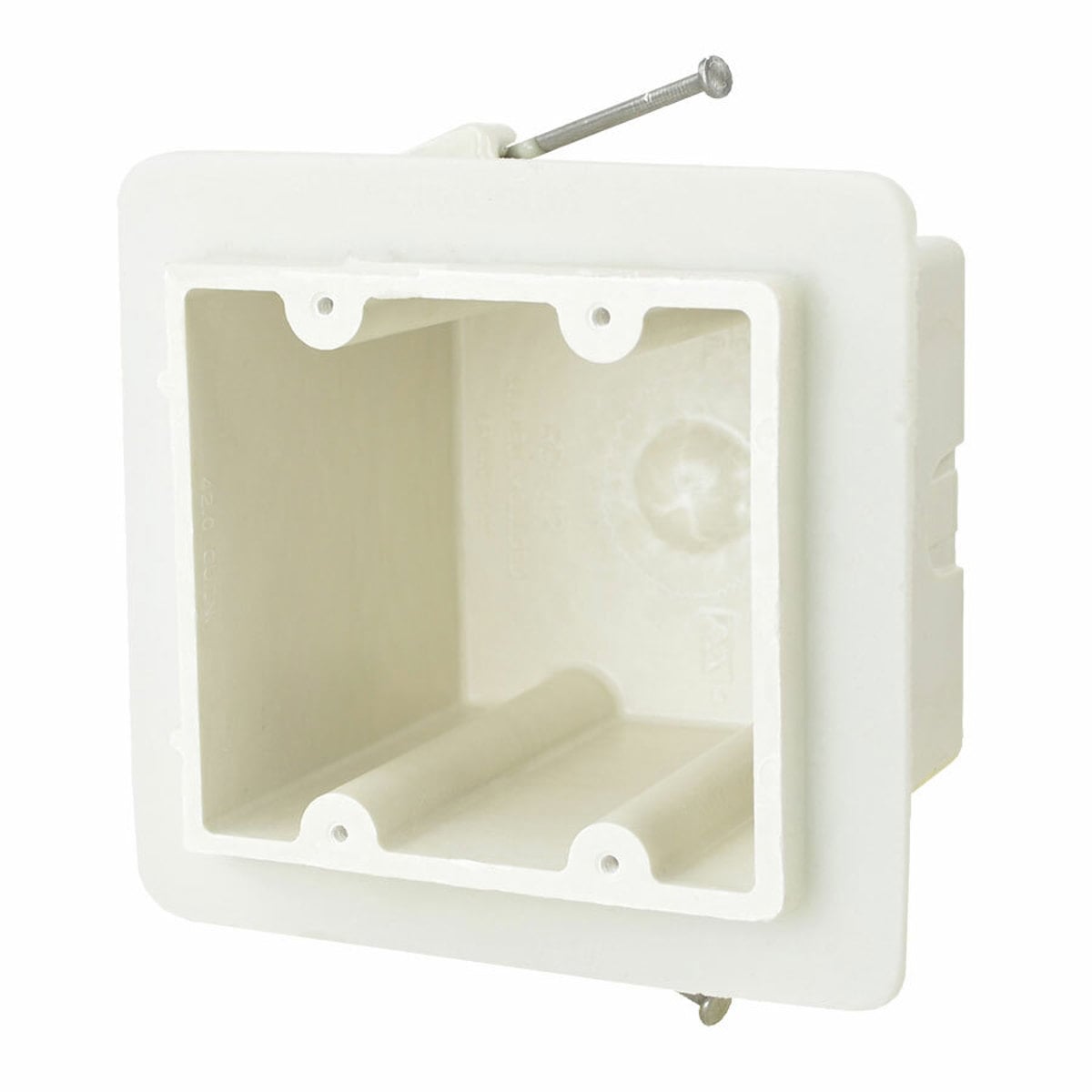

The ALLIED MOULDED PRODUCTS RD-42V is a 42.0 Cu. In. range/dryer electrical box designed for new work residential construction. It is suitable for 2 HR fire resistive walls and is air-tight. Constructed from fiberglass reinforced polyester with a polyurethane flange, it features machine tapped holes for 2-position devices and an internal metal clamp for easy wire adjustment. The box is shatter resistant at low temperatures and resists distortion at high temperatures, ensuring durability for nonmetallic sheathed cable applications.

• Machine tapped holes for 2-position device for secure installation.
• Internal metal clamp facilitates easy wire adjustment and secure cable entry.
• Rigid hard box construction prevents distortion at high temperatures and offers shatter resistance at low temperatures.

Product Highlights

Durable fiberglass reinforced polyester construction with vapor seal, ideal for new work residential 2 HR fire resistive walls and nonmetallic sheathed cable.

Product Information

Standard Information

• Brand: ALLIED MOULDED PRODUCTS
• Manufacturer Part Number: RD-42V
• Country of Origin: United States

Technical Specifications

• Catalog Number: RD-42V
• Manufacturer: Allied Moulded Products
• Brand: Allied Moulded Products
• Sub Brand: FIBERGLASSBOX
• Country of Origin: United States
• Made in USA: Yes
• Application: New work residential construction 2 HR fire resistive walls - air tight
• Cable Entry: One "no tools" knockout with one metal wire clamp which accomodates #6 & #8 wire
• Construction: Injection molded
• Capacity: 42.0 Cu. In.
• Insulation: Nonconductive nonmetallic
• Knockouts: Yes
• Material: Fiberglass reinforced polyester - thermoset with polyurethane flange
• Mounting: Angled Mid Nails With Fetter Ring Nails
• Special Features: Machine tapped holes for 2-position device, internal metal clamp for easy wire adjustment, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures
• Standard: UL 514 C
• UPC: 085339129066
• GTIN: 00085339129066
• Item Type: Range/dryer electrical box for use with nonmetallic sheathed cable
• Fire Rating: 2 HR
• SKU: 25479263
• ECCN: EAR99
• UNSPSC: 39121309
• Nail Material: Plated Carbon Steel
• Clamp Material: Galvanized Steel
• Clamp Screw Material: Zinc Plated Steel
• Vapor Seal Material: Polyurethane
• Used On: Non-Metallic Sheathed Cable
• Commodity Leaf: Electrical Boxes
• PDW Tab Leaf Class: Switch Box - Nonmetallic
• Product Class Name: Electrical Outlet Box, Nonmetallic
• Series/Model: RD-42
