Allied Moulded Products PC234-16 4 in round fixture support box 23 cu in (2-15/16 in depth)

Product Description

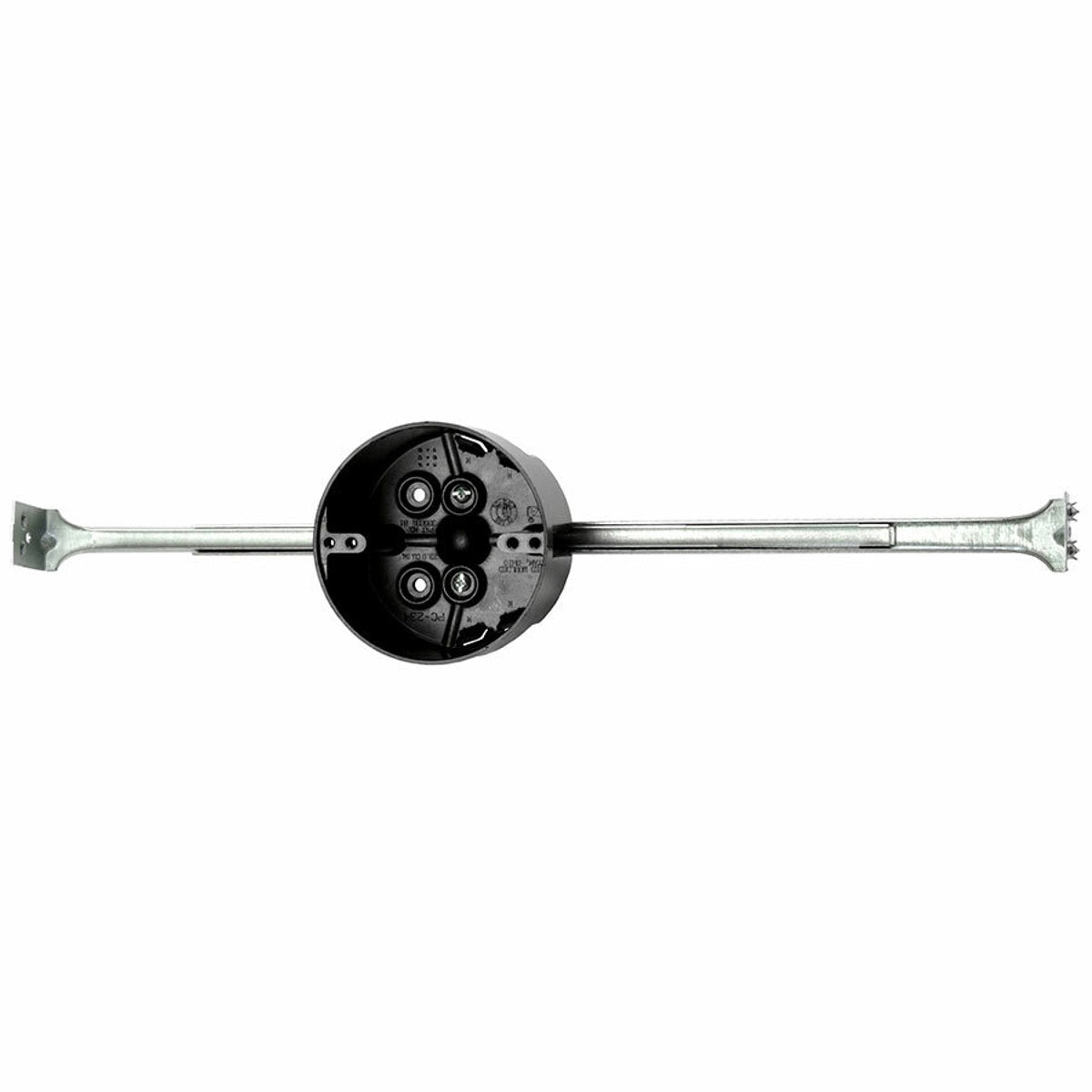

The Allied Moulded Products PC234-16 is a 4-inch round polycarbonate thermoplastic fixture support box providing 23.0 cubic inches of capacity and a 2-15/16 inch depth. It is designed for new work residential construction and is rated for 2-hour fire-resistive walls and ceilings, supporting up to 50 lb fixtures. The box accepts nonmetallic sheathed cable through four molded-in Speed Klamps and includes machine-tapped fixture holes and a galvanized adjustable stabilizer bar with an adjustable bar hanger.

• 23.0 cu in capacity; 4 in diameter; 2-15/16 in depth; polycarbonate thermoplastic construction
• Supports up to 50 lb fixtures and rated for 2-hour fire-resistive walls and ceilings
• Adjustable bar hanger (max 16 in on-center joist application); four molded-in Speed Klamps; machine-tapped fixture holes

Product Highlights

4 in round polycarbonate fixture support box, 23 cu in, 2-15/16 in deep, 50 lb support, adjustable bar hanger, UL 514C certified

Product Information

Standard Information

• Brand: ALLIED MOULDED PRODUCTS
• Manufacturer Part Number: PC234-16
• Country of Origin: United States
