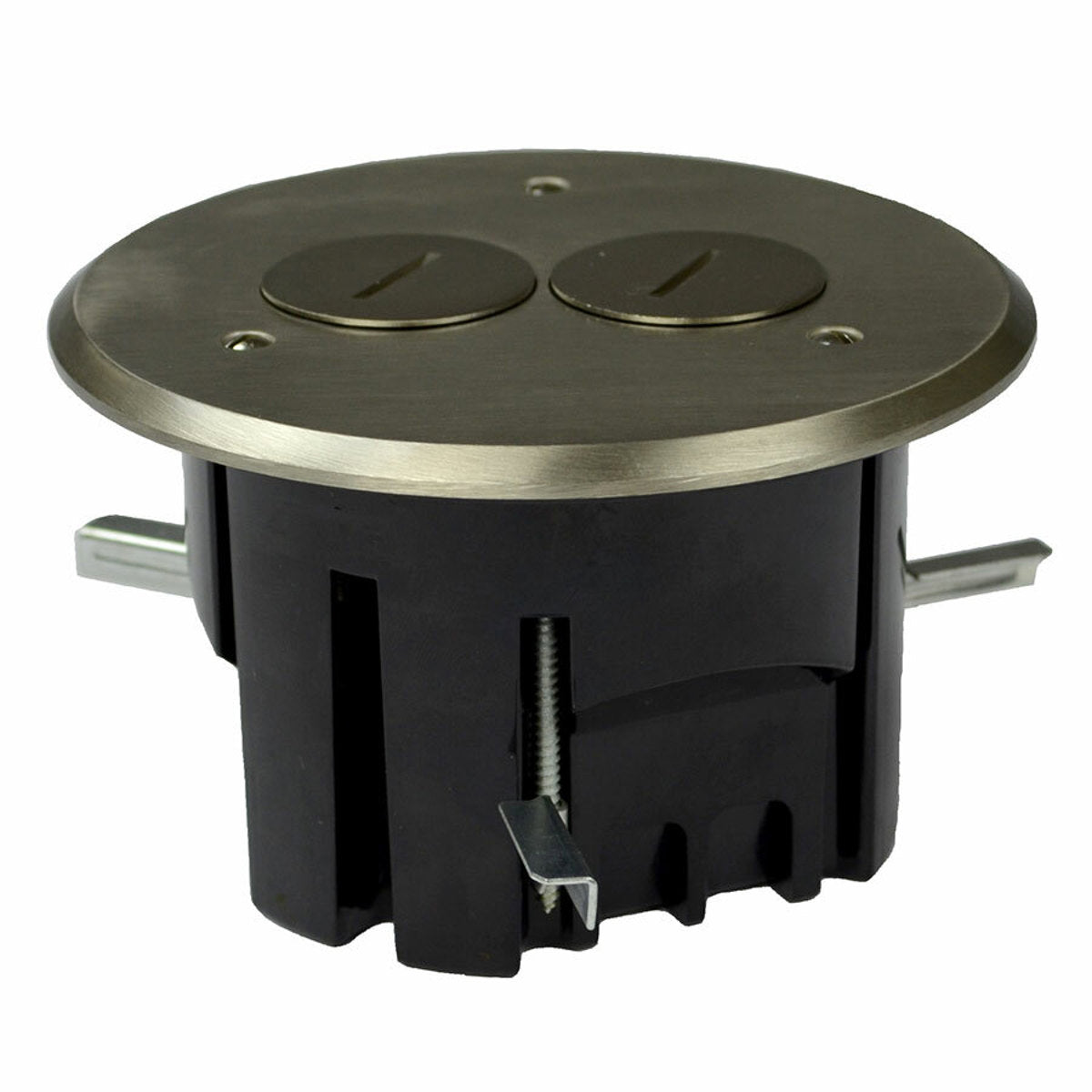

Allied Moulded Products FB-3N Round Floor Box Assembly 4 Inch Dia x 3 Inch Depth, 24.5 Cubic-Inch

Product Description

The ALLIED MOULDED PRODUCTS FB-3N is a 24.5 cubic inch round floor box assembly with a nickel-plated brass duplex device cover. Designed for use in wood floor construction and can be installed with multiple floor substrate materials. It meets scrub-water exclusion test standards and features a tamper-resistant receptacle and a simple exterior shape for easy cut-in application. Used in residential wood floor cut-in applications with nonmetallic sheathed cable.

• Dimension: 4 Inch Dia x 3 Inch Depth
• Galvanized steel dust plate
• Designed for use in wood floor construction

Product Highlights

This floor box assembly is ideal for residential wood floors, providing a convenient and safe power outlet solution.

Product Information

Standard Information

• Brand: ALLIED MOULDED PRODUCTS
• Manufacturer Part Number: FB-3N
• Country of Origin: China

Technical Specifications

• Catalog Number: FB-3N
• Manufacturer: Allied Moulded Products
• Brand: Allied Moulded Products
• Country of Origin: China
• Made in USA: No
• Application: Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable
• Cable Entry: Four molded-in Speed Klamps and two 1/2" knockouts
• Construction: Cast cover, injection molded box
• Cubic Capacity: 24.5
• Insulation: Nonconductive nonmetallic box & bare metal cover grounded
• Knockouts: Yes
• Material: Polycarbonate box, brass cover, galvanized steel dust plate, nonmetallic device with copper terminals and brass ground, closed cell rubber gasket
• Number of Outlets: 2
• Special Features: designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application
• Standard: UL 514 C
• UPC: 085339941309
• GTIN: 00085339941309
• Item Type: Round floor box assembly with a nickel-plated duplex device cover
• Length: 3.9400 Inch
• Width: 3.9400 Inch
• Height: 3.0000 Inch
• Size: Box - Dia=3.936", Depth=3.0" Cover - Dia=5.25", Thickness=.217"
• ECCN: EAR99
• UNSPSC: 39121307
• Box Shape: Round
• Knockout Size: 1/2 in
• Number of Knockouts: 2
• Shape: Round
• Type: Duplex
• Capacity: 24.5 Cu. In.
