Allied Moulded Products AMU1426TF 14X12X6 UL ENCL HNG TL CVR FLNG

Product Description

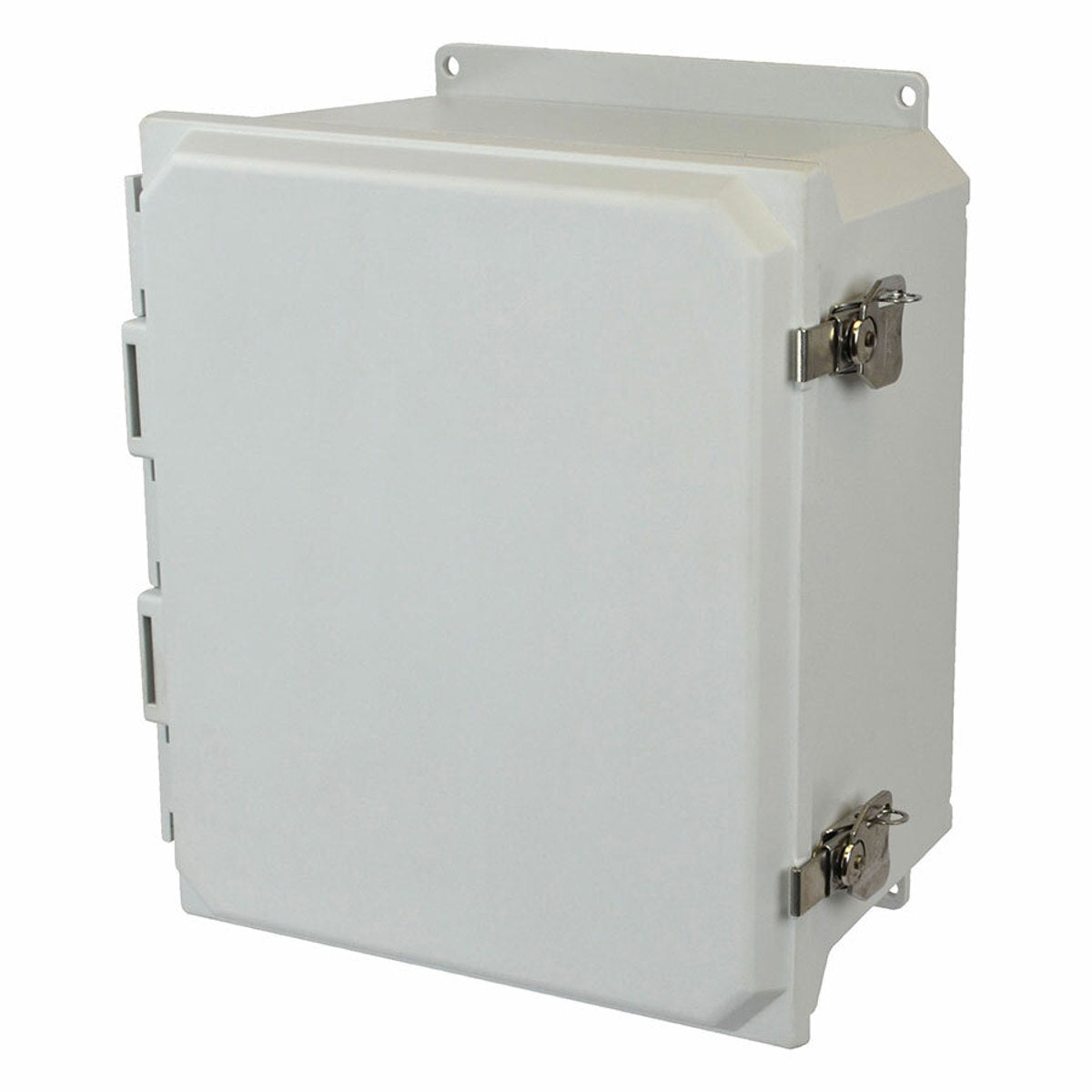

The Allied Moulded Products AMU1426TF is a NEMA 4X nonmetallic enclosure made for industrial control panels. It supports applications up to a voltage of six hundred volts. Key features include a hinged twist latch, a flush opaque cover, and a closed cell neoprene cord gasket for enhanced sealing.

• Nonmetallic construction for durability
• Dimensions: fourteen point zero five inches by twelve point two seven inches by six point thirteen inches
• Standard: UL 508A for industrial control panels

Product Highlights

This enclosure is designed for general industrial use and is suitable for various mounting applications. It is made from ULTRAGUARD fiberglass reinforced polyester, ensuring strength and resistance to environmental factors.

Product Information

Standard Information

• Brand: Allied Moulded Products
• Sub Brand: ULTRALINE

Technical Specifications

• Catalog Number: AMU1426TF
• Application: Industrial control panels
• Color: RAL 7035 - Gray
• Cubic Capacity: 1,207 cu. in.
• Material: ULTRAGUARD fiberglass reinforced polyester
• NEMA Rating: 4X
• Mounting: Nonmetal flange fastened to back side brass insert
• Country of Origin: United States
