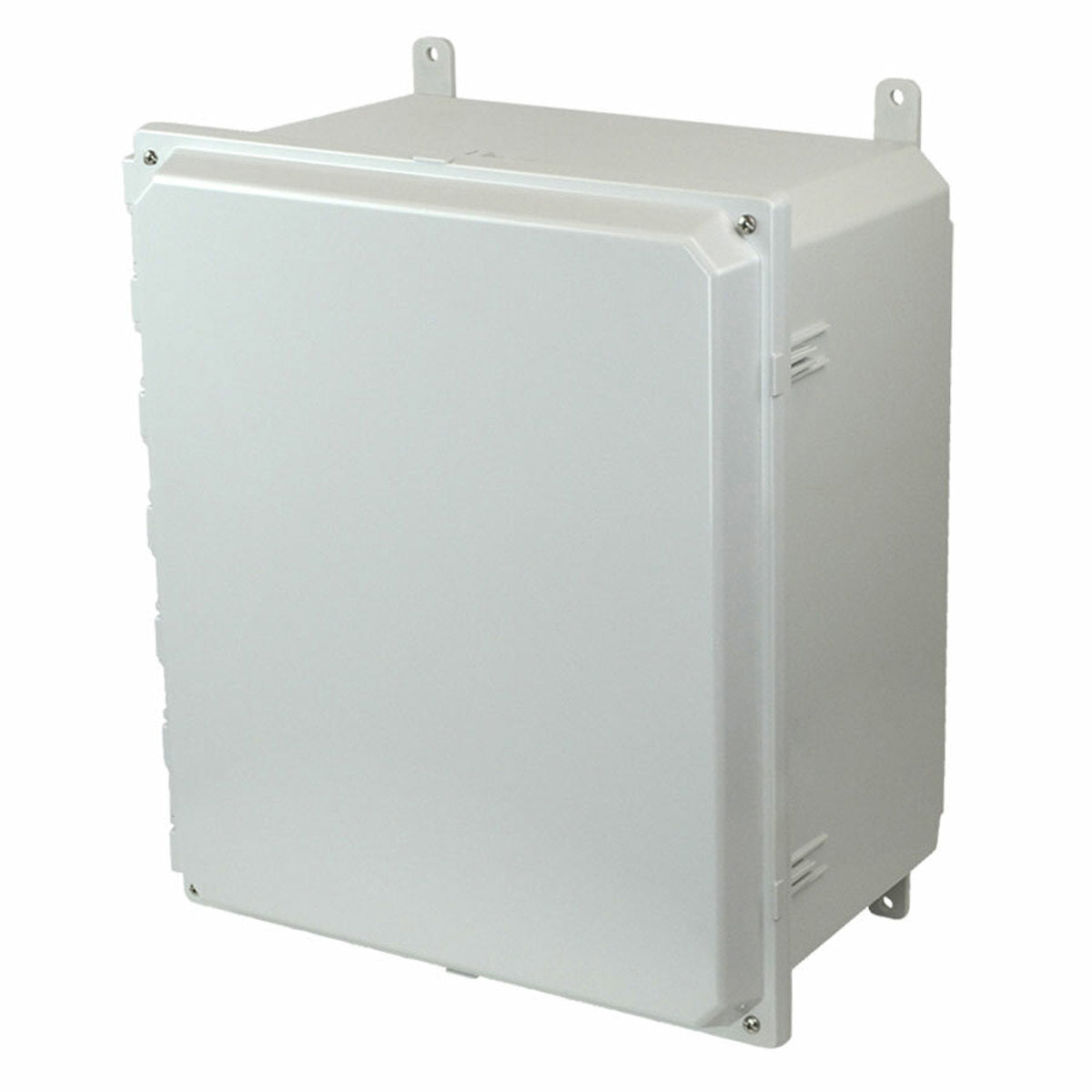

Allied Moulded Products AMP1648 16X14X8 PC ENCL SCR CVR FEET

Product Description

The Allied Moulded Products AMP1648 is a nonmetallic enclosure designed for industrial control panels. This enclosure operates at a maximum voltage of 600 volts. It features a lift-off type screw down with a flush cover and an aesthetically pleasing design. The formed-in-place polyurethane gasket provides a strong seal against dust and moisture, increasing durability and reliability in various environments.

• Type: NEMA 4X Nonmetallic
• Material: Polycarbonate - thermoplastic
• Usable Depth: Eight point twenty-four inches

Product Highlights

The AMP1648 is primarily used in locations where protection against water and dust is required. Its robust design makes it ideal for various industrial applications.

Product Information

Standard Information

• Catalog Number: AMP1648
• Manufacturer: Allied Moulded Products

Technical Specifications

• Height: fifteen point nine eight inches
• Width: thirteen point nine eight inches
• Depth: seven point eighty-one inches plus raised cover
• NEMA Rating: 4X
• Cubic Capacity: one thousand nine hundred sixty-eight cubic inches (one point fourteen cubic feet)
• Color: RAL 7035 - Gray
• Insulation: Nonconductive nonmetallic
• Mounting: Nonmetal feet fastened to back side brass insert
