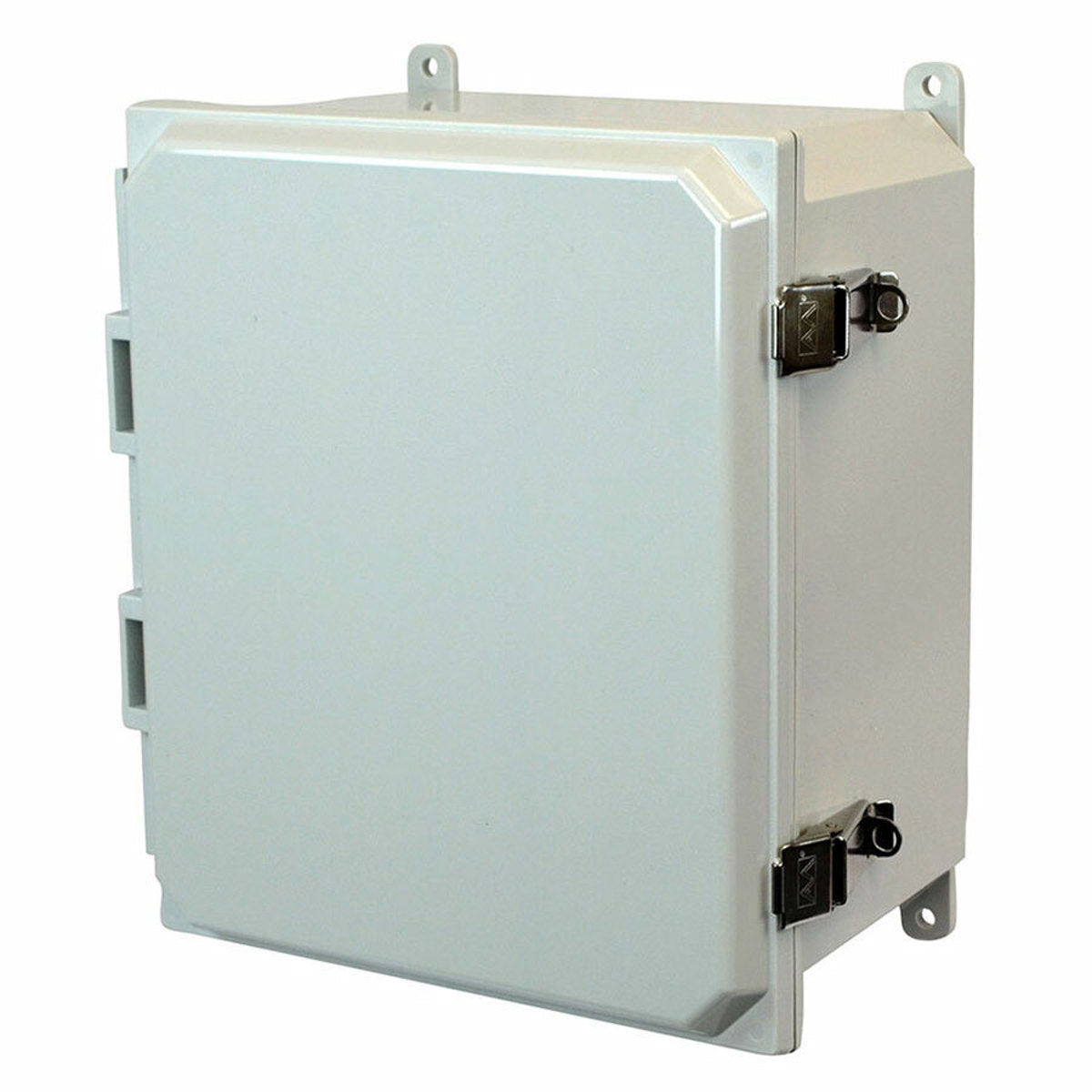

Allied Moulded Products AMP1206L 12X10X6 PC ENCL HNG SL CVR FEET

Product Description

The Allied Moulded Products AMP1206L is a nonmetallic enclosure designed for industrial control panels. This model operates at a voltage of six hundred volts or less. It features a hinged snap latch and a flush cover design for aesthetic appeal and durability.

• NEMA 4X rated for indoor and outdoor applications.
• Constructed from polycarbonate, it ensures resistance to various environmental conditions.
• Includes formed-in-place polyurethane gasket for enhanced sealing.

Product Highlights

This enclosure is ideal for general industrial use and is robust enough to withstand harsh conditions.

Product Information

Standard Information

• Manufacturer: Allied Moulded Products
• Country of Origin: United States

Technical Specifications

• Catalog Number: AMP1206L
• Material: Polycarbonate - thermoplastic
• Size: A=11.92, B=10.15, C=5.98 plus .87 raised cover, usable depth=6.18
• Color: RAL 7035 - Gray
• Cubic Capacity: 829 cu. in. (.48 cu. ft.)
• NEMA Rating: 4X
• Special Features: Hinged snap latch, flush cover design
• Mounting: Nonmetal feet fastened to back side brass insert
