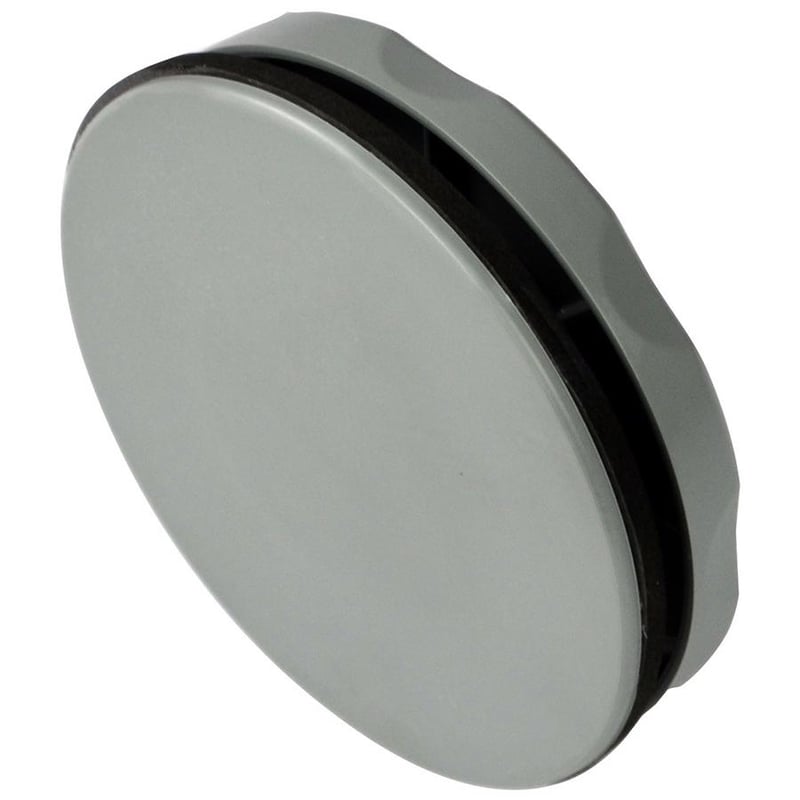

Allied Moulded Products AMHS250-GY NEMA 4X Enclosure Knockout Plug

Product Description

The Allied Moulded Products AMHS250-GY is a NEMA 4X enclosure knockout plug. This product features self-centering fins that promote easy assembly without tools. It is designed for sealing unused holes in NEMA 4X enclosures while ensuring compliance with NEMA, UL, and CSA ratings.

• Plug fins are self-centering and anti-rotational for no-tools installation.
• Constructed from polycarbonate thermoplastic and neoprene/EPDM gasket.
• Maintains applicable NEMA/UL/CSA enclosure ratings.

Product Highlights

This knockout plug is ideal for securing openings in outdoor or damp environments, supporting the integrity of NEMA 4X enclosures.

Product Information

Standard Information

• Brand: Allied Moulded Products
• MPN: AMHS250-GY

Technical Specifications

• Application: Seals unused holes in NEMA 4X enclosures
• Material: Polycarbonate thermoplastic plug and nut, neoprene/EPDM gasket
• Color: Dark Gray
• Type: NEMA 4X Enclosure Hole Plug Assembly
• Standard: UL 50E, UL 508A, CSA C22.2 No. 14-10
• Trade Size: 2 1/2 inches
• Consist of: One plug, nut, and gasket
• Insulation: Nonconductive nonmetallic
