Allied Moulded Products AMHMI88CCH 8X8 HMI CLR CVR KIT HNG SCR

Product Description

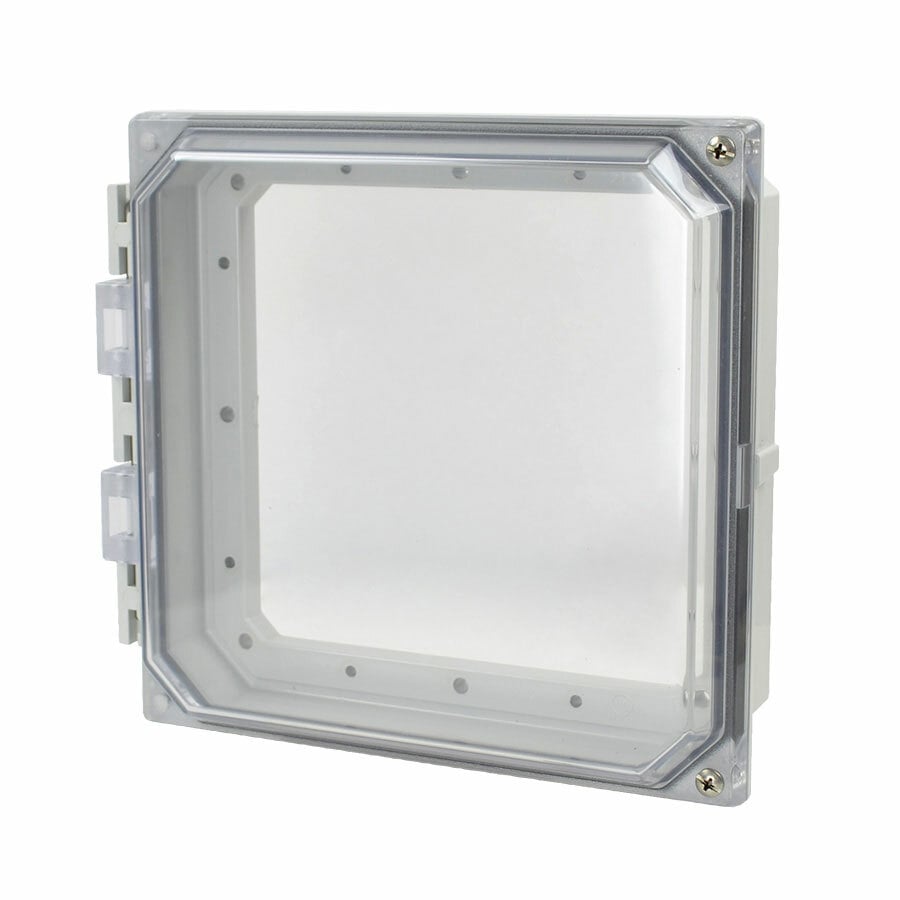

The Allied Moulded Products HMI cover kit, with MPN AMHMI88CCH, is designed to cover and protect electrical and electronic controls. This includes Human Machine Interface (HMI) instruments, touch pad controllers, and pushbuttons mounted on the surface of NEMA 4X enclosures. This kit allows users to monitor and perform maintenance without opening the enclosure, reducing the risk of arc flash and other safety hazards.

• Size: Seven point nine three by eight point one five by zero point nine six inches
• Mounting: Eight screws included
• Made from clear polycarbonate with hinged screw latching

Product Highlights

This cover kit is lightweight, cost-effective, and offers a long life cycle compared to steel alternatives. Its rigid design features a gasket system within a continuous channel on the cover and frame, enhancing durability.

Product Information

Standard Information

• Catalog Number: AMHMI88CCH
• Manufacturer: Allied Moulded Products

Technical Specifications

• Application: Protects electrical controls, HMI instruments, and touch pad controllers
• Size: Seven point nine three by eight point one five by zero point nine six inches
• Color: RAL 7035 light gray frame with clear cover
• Material: Injection molded polycarbonate
• Cubic Capacity: One hundred fifty-five cubic inches
• NEMA Rating: 4X
• Standard: UL 508A
• Country of Origin: United States
