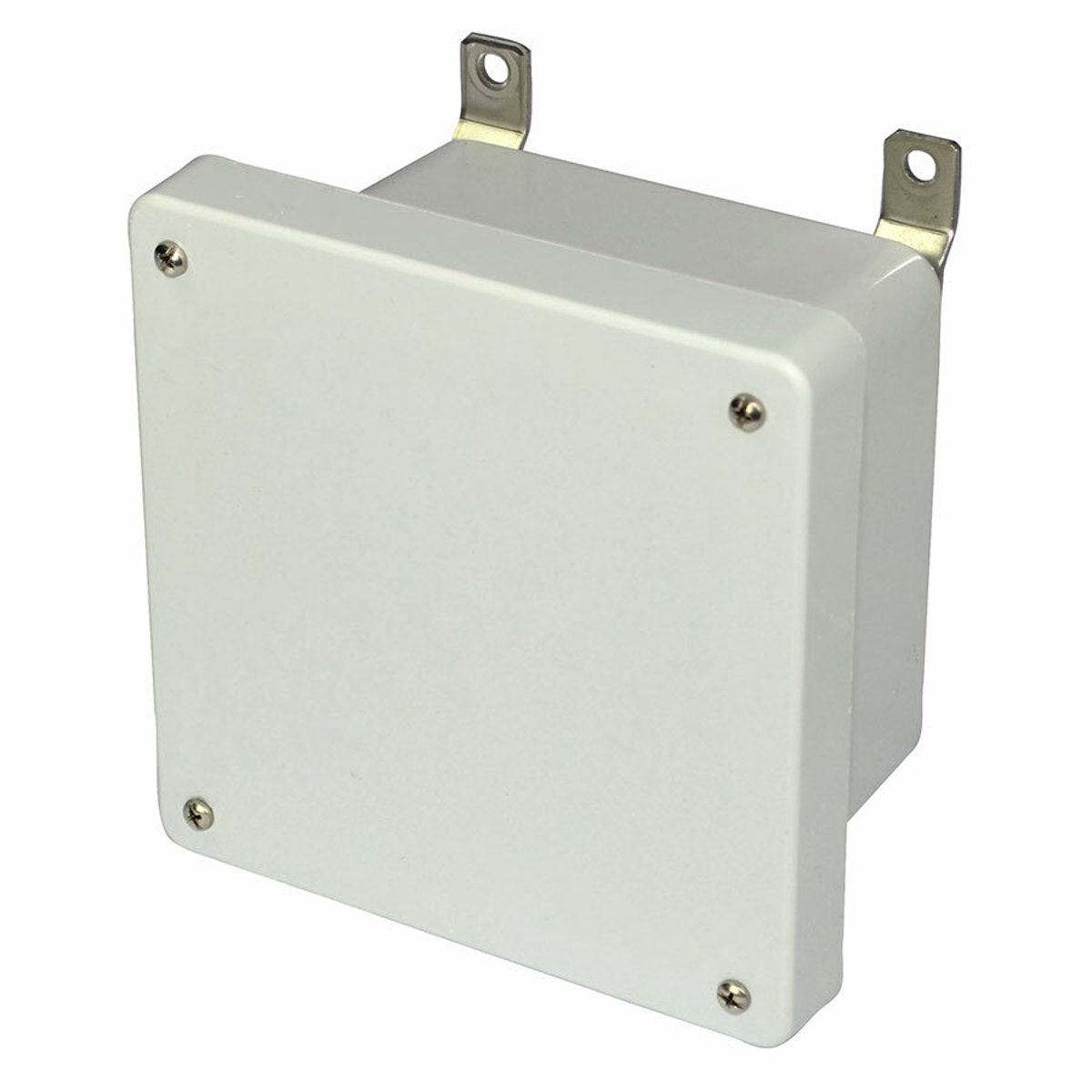

Allied Moulded Products AM664 6X6X4 Enclosure Lift-Off Scr Cvr

Product Description

The Allied Moulded Products AM664 is a NEMA 4X type nonmetallic enclosure designed for industrial control applications. This enclosure features a lift-off cover that is screw down and overlapping. It complies with UL standards for industrial control panels.

• Type: NEMA 4X
• Material: Fiberglass reinforced polyester
• Usable Depth: Three point seven six inches

Product Highlights

This enclosure protects electrical and electronic controls, instruments, and components in both indoor and outdoor settings. It is suitable for environments with extreme temperatures and corrosive conditions.

Product Information

Standard Information

• Manufacturer: Allied Moulded Products
• MPN: AM664

Technical Specifications

• Application: Industrial control panels, voltage up to 600 VAC
• Color: RAL 7035 - Gray
• Height: 6.1 inches
• Width: 6.1 inches
• Depth: 4.18 inches
• Cubic Capacity: 156 cu. In.
• Insulation: Nonconductive nonmetallic
• Mounting: Stainless steel feet fastened to brass inserts
