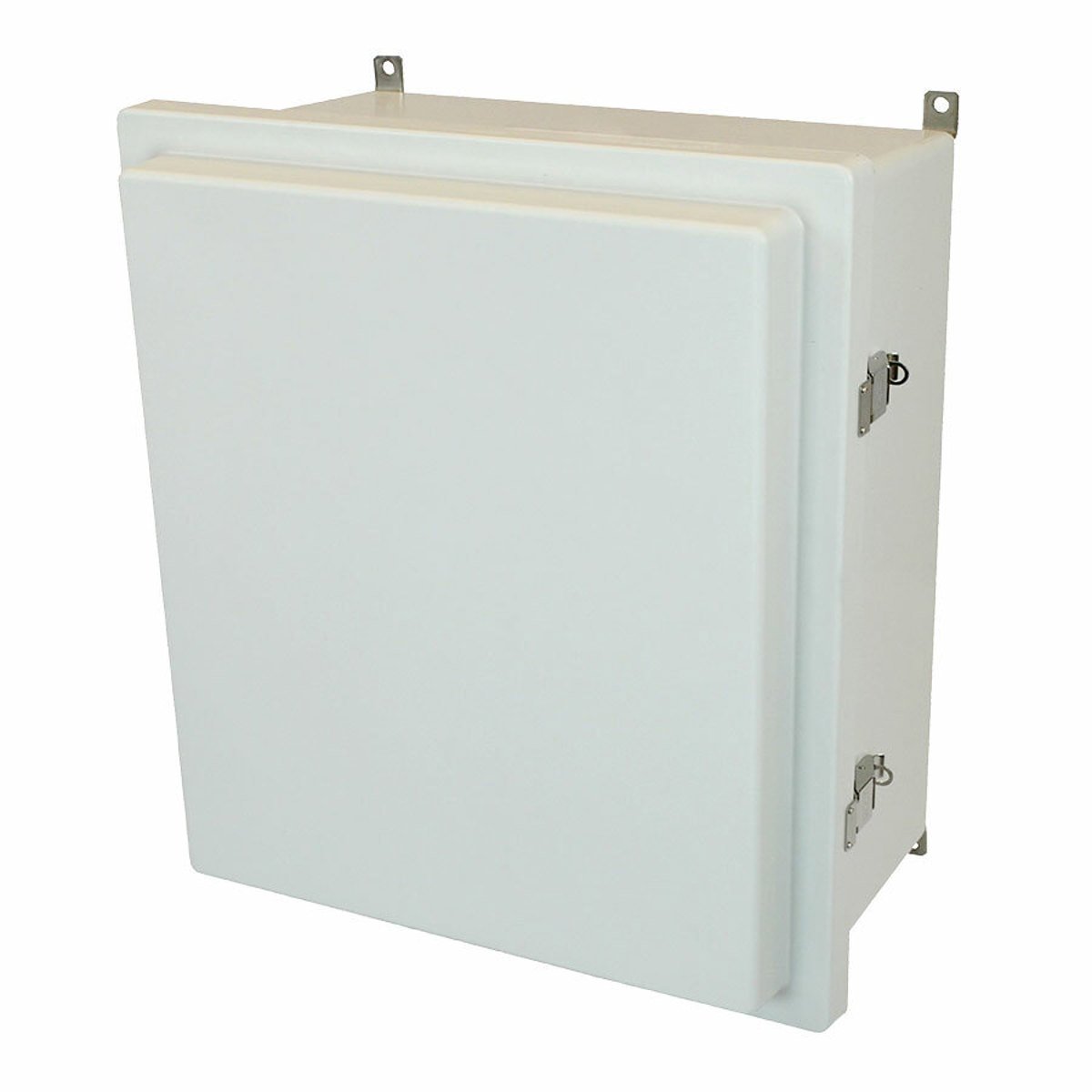

Allied Moulded Products AM1868RL Enclosure Fiberglass Hinged Cover 18.40 x 16.40 x 8.13 in.

Product Description

The Allied Moulded Products AM1868RL is an industrial-grade fiberglass enclosure designed for durable applications in adverse environments. This nonmetallic enclosure meets NEMA 4X standards, making it suitable for outdoor use. Its raised hinged snap latch provides secure closure, and the overlapping opaque cover is equipped with a formed-in-place polyurethane gasket system for additional protection against moisture and contaminants.

• NEMA 4X rated for outdoor use
• Constructed from ULTRAGUARD fiberglass reinforced polyester
• Usable depth of nine point two one inches for optimal space management

Product Highlights

This enclosure is ideal for housing industrial control panels and electrical equipment intended for general industrial use, operating at voltages of six hundred volts or less.

Product Information

Standard Information

• Brand: Allied Moulded Products
• Country of Origin: United States

Technical Specifications

• Catalog Number: AM1868RL
• Size: A=18.40, B=16.40, C=8.13 plus 1.75 raised cover
• Cubic Capacity: 2,981 cu. in. (1.73 cu. ft.)
• Material: Fiberglass reinforced polyester
• Insulation: Nonconductive nonmetallic
• Color: RAL 7035 - Gray
• NEMA Rating: 4X
• Mounting: Stainless steel feet on the back side
