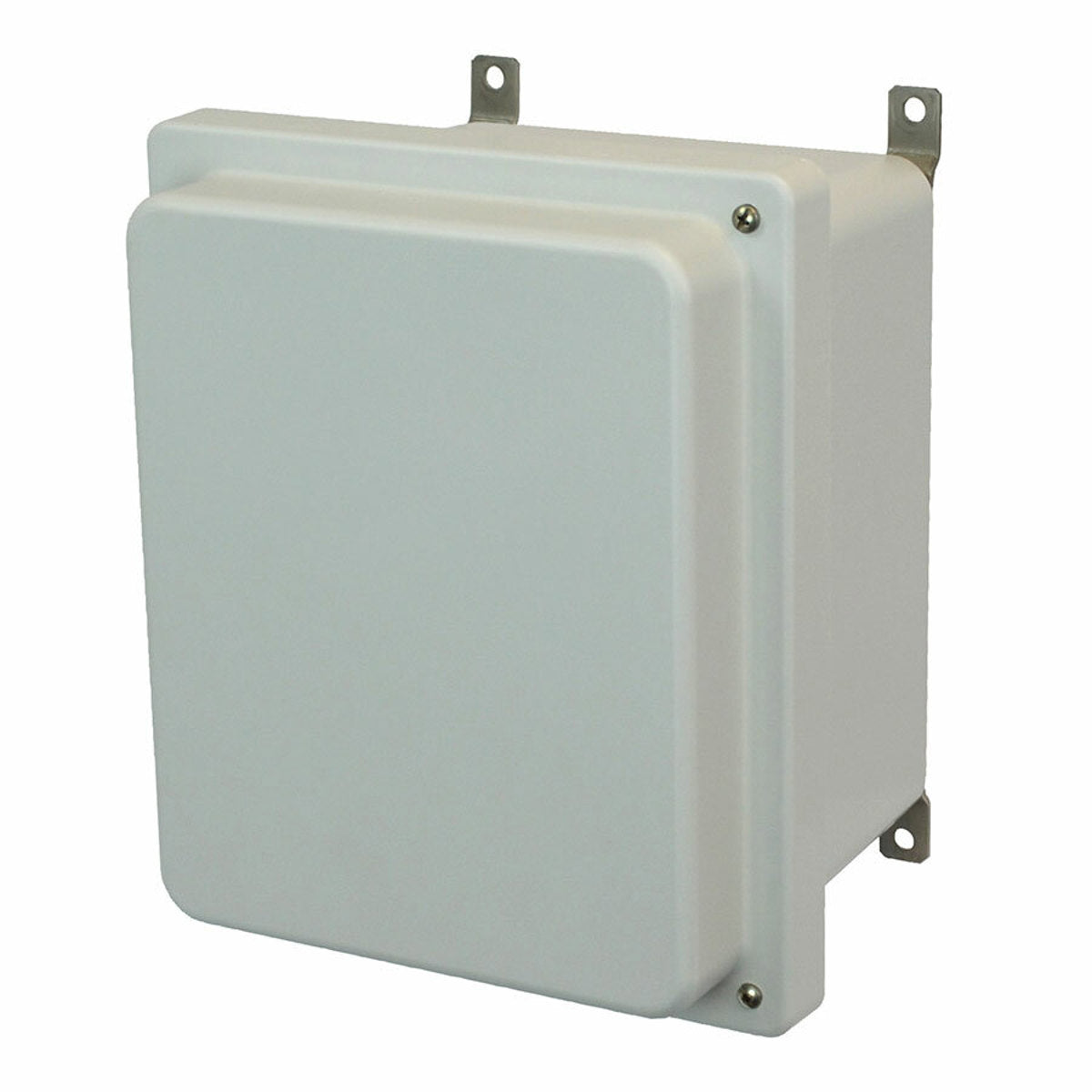

Allied Moulded Products AM1084RH 10x8x4 Enclosure Raised Hinged SCR CVR

Product Description

The Allied Moulded Products AM1084RH is a nonmetallic enclosure designed for industrial control applications. It meets NEMA 4X standards and protects against dust and water. This enclosure features a raised, hinged screw-down cover with an overlapping design and a formed-in-place polyurethane gasket system to ensure a tight seal.

• NEMA 4X rated for industrial environments
• Constructed from ULTRAGUARD fiberglass reinforced polyester
• Internal dimensions A=10.14, B=8.26, C=4.13 plus a raised cover for added depth

Product Highlights

This enclosure is ideal for housing electrical controls and system components, suitable for environments operating at a voltage of six hundred volts or less.

Product Information

Standard Information

• Manufacturer: Allied Moulded Products
• Brand: Allied Moulded Products

Technical Specifications

• Catalog Number: AM1084RH
• Sub Brand: AM JIC
• Color: RAL 7035 - Gray
• Material: ULTRAGUARD fiberglass reinforced polyester
• Insulation: Nonconductive nonmetallic
• Size: A=10.14, B=8.26, C=4.13 plus 1.75 raised cover, usable depth=5.21
• Cubic Capacity: 492 cu. In.
• NEMA Rating: 4X
• Mounting: Stainless steel feet fastened to back side brass inserts
• Construction: Compression molded
• Special Features: Raised, hinged type screw down cover
• Application: Industrial control panels
• Country of Origin: United States
