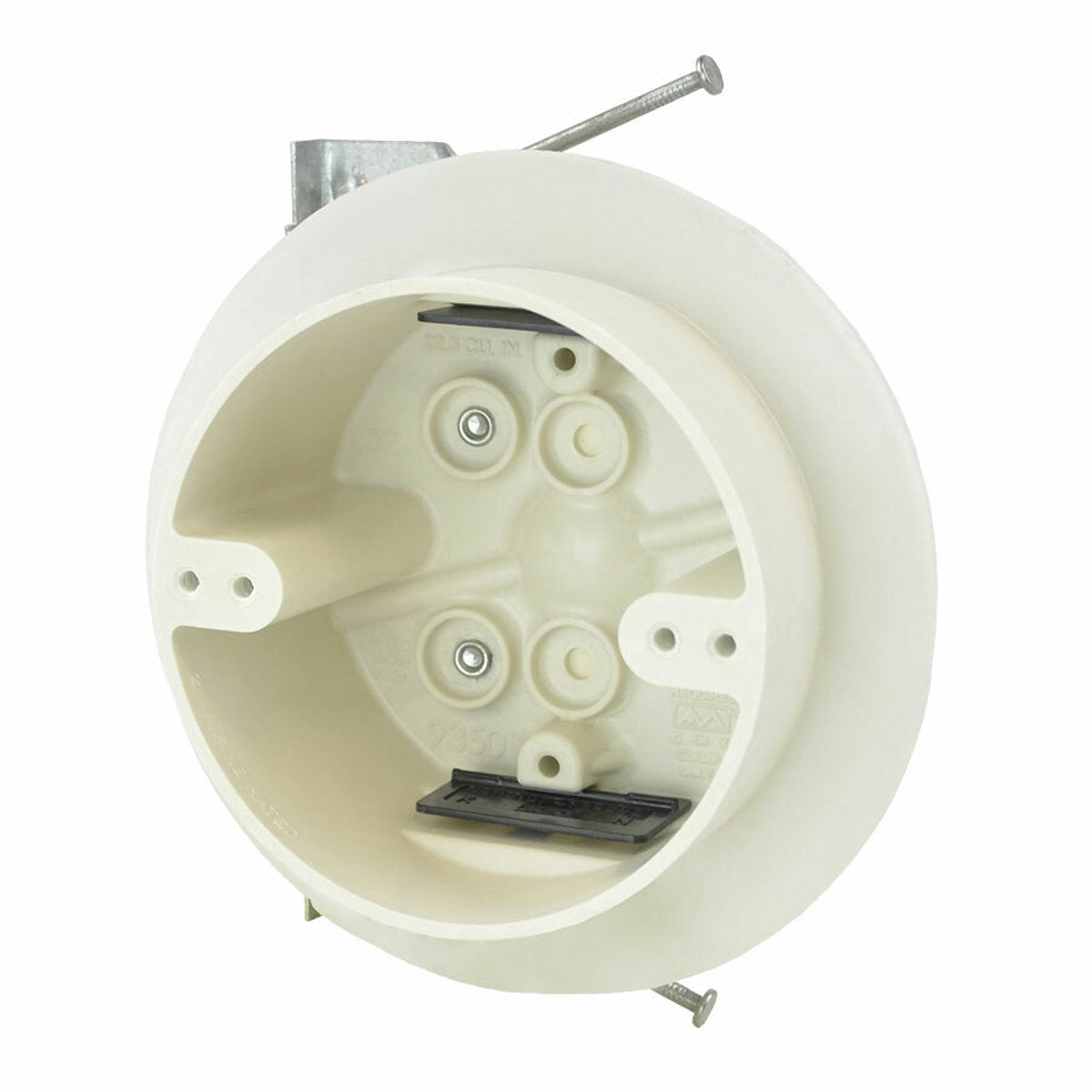

Allied Moulded Products 9350-HNKV2 Speed Klamps Vapor-Tight Round Fixture Support Box 4 inch diameter 2-7/16 inch depth 22.5 cubic-inch

Product Description

The Allied Moulded Products 9350-HNKV2 is a 4-inch diameter round fixture support box designed for new work residential construction. It features a polyurethane flange for double drywall offset and machine tapped fixture holes. Constructed from fiberglass reinforced polyester, this thermoset box offers rigid construction, resisting distortion at high temperatures and shattering at low temperatures. It is air-tight and suitable for 2-hour fire resistive walls and ceilings, supporting up to 50 lbs.

• Dimension: 4 Inch Dia x 2-7/16 Inch Depth
• 2 hour wall and ceiling fire rated
• Double sheet drywall set back

Product Highlights

Features a polyurethane flange for double drywall offset, machine tapped fixture holes, and rigid construction resistant to temperature extremes.

Product Information

Standard Information

• Brand: ALLIED MOULDED PRODUCTS
• Manufacturer Part Number: 9350-HNKV2
• Country of Origin: United States of America

Technical Specifications

• UPC: 085339104858
• GTIN: 00085339104858
• Diameter: 4 in
• Depth: 2-7/16 in
• Brand: Allied Moulded Products
• Color: Beige;tan
• Material: Fiberglass reinforced polyester - thermoset box with galvanized steel hanger bracket
• Mounting: Ceiling
• Standards: ANSI / UL 514C: File No E30594
• Box Type: Ceiling - Fixture
• Knockouts: Yes
• Sub-Brand: FIBERGLASSBOX
• Insulation: Nonconductive nonmetallic
• Application: New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - air tight
• Cable Entry: Four "no tools" knockouts with 2 Speed "K" Clamps
• Made in USA: Yes
• Construction: Injection molded
• Manufacturer: Allied Moulded Products
• MPN: 9350-HNKV2
• Box Capacity: 22.5 cu. in.
• Special Features: Polyurethane flange for double drywall offset, machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures
• Country of Origin: US - United States
• ECCN: EAR99
• UNSPSC: 39121316
• Mounting Type: Nail-on backside HN hanger bracket for adjusting to additional wall/ceiling substrate
• Box Features: "HN" bracket, Air-sealed flange (energy efficient), Speed "K" nonmetallic clamps
• Installation Type: New Work
• Fixture Support Rating: 50 lbs
• Patents: U.S. Patent No. 6,908,003 B2
• Additional Materials: Galvanized steel brackets and plated carbon steel fasteners, Polyurethane flange, Polyvinyl chloride clamps
• Fire Classification: Fire Test of Building Construction Materials ANSI / UL 263: File No. CEYY.R9379
• Fire Resistance Classification in Wall Assemblies: 2-Hours or less
• Fire Resistance Classification in Floor-Ceiling Assemblies: 2-Hours or Less
• Categories: Ceiling - Fixture, Electrical Boxes, Residential Products
• Tags: Air-Sealed, Back-to-Back, NEMA OS 4
• SKU: 85339104858
• Use With: Non-Metallic Sheathed Cable
