Allied Moulded Products 9335-BHKV2 20.5 Cu. In. 3.5 Dia. Round Fixture Support Box

Product Description

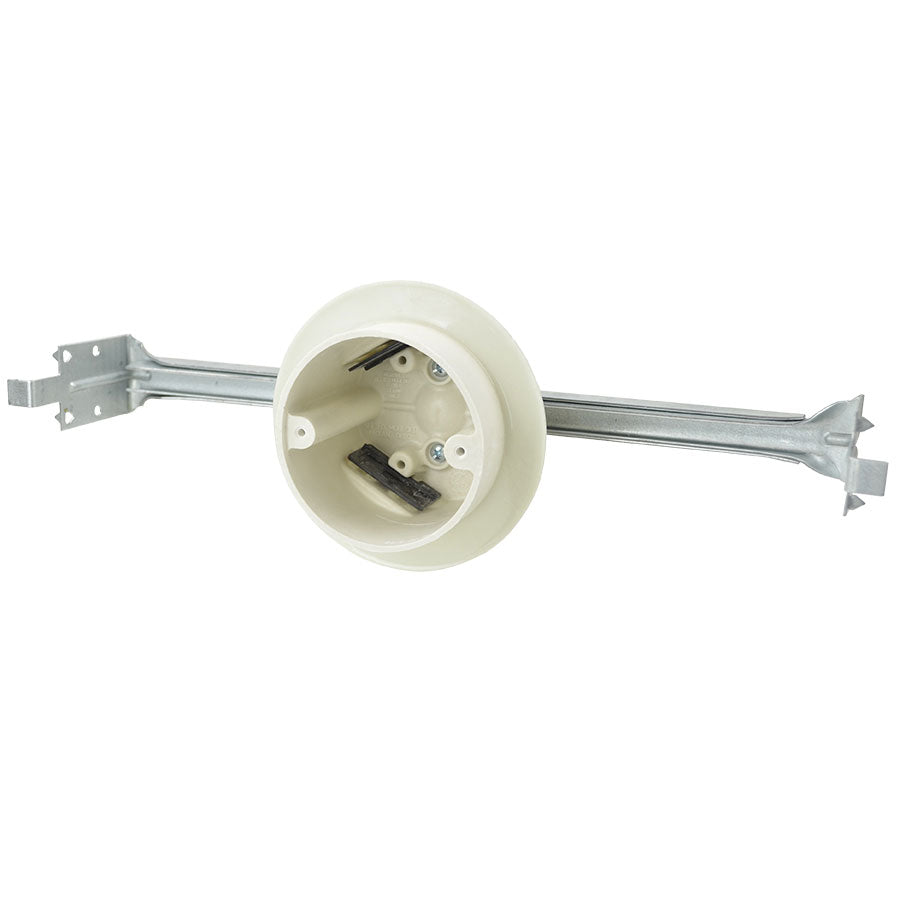

The Allied Moulded Products 9335-BHKV2 is a 20.5 cubic inch, 3.5 inch diameter round fixture support box designed for new work residential construction. It is suitable for 2-hour fire resistive walls and ceilings, supporting fixtures up to 50 lbs. Constructed from fiberglass reinforced polyester, this air-tight box features a polyurethane flange for double drywall offset and machine-tapped fixture holes. It includes an adjustable bar hanger for 16 to 24 inch on-center joist applications and Speed Klamps for nonmetallic sheathed cable.

• For use with nonmetallic sheathed cable
• Polyurethane flange for double drywall offset
• Rigid hard box construction with no distortion at high temperatures and shatter resistance at low temperatures

Product Highlights

Air-tight, 2-hour fire resistive fixture support box with adjustable bar hanger and Speed Klamps.

Product Information

Standard Information

• Brand: ALLIED MOULDED PRODUCTS
• Manufacturer Part Number: 9335-BHKV2
• Country of Origin: United States of America

Technical Specifications

• MPN: 9335-BHKV2
• Manufacturer: Allied Moulded Products
• Brand: Allied Moulded Products
• Sub Brand: FIBERGLASSBOX
• Country of Origin: United States
• Made in USA: Yes
• Application: New work residential construction, 2 HR fire resistive walls and ceilings (50 lbs. fixture support), air tight
• Cable Entry: Four "no tools" knockouts with 2 Speed "K" Clamps
• Color: Beige;tan
• Construction: Injection molded
• Volume: 20.5 cu. in.
• Insulation: Nonconductive nonmetallic
• Knockouts: Yes
• Material: Fiberglass reinforced polyester, thermoset box, galvanized steel adjustable bar hanger
• Mounting Type: Adjustable bar hanger
• Joist Spacing: 16" to 24" on center
• Special Features: Polyurethane flange for double drywall offset, machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures
• Standards: UL 514 C, ANSI / UL 514C, NEMA OS 4 – Energy Efficient Air-Sealed Boxes for Electrical Applications
• UPC: 085339881254
• GTIN: 00085339881254
• Item Type: Round fixture support box
• Depth: 2 15/16 in
• Diameter: 3 1/2 in
• SKU: 85339881254
• Categories: Ceiling - Fixture, Electrical Boxes, Residential Products
• Box Type: Ceiling - Fixture
• Box Features: Air-sealed flange (energy efficient), Bar hanger, Speed "K" nonmetallic clamps
• Installation Type: New Work
• Fixture Support Rating: 50 lbs
• Product Line: Vapor Seal
• UNSPSC: 39121316
• Patents: U.S. Patent No. 6,908,003 B2
• Additional Materials: Galvanized steel brackets, plated carbon steel fasteners, Polyurethane flange, Polyvinyl chloride clamps
• Fire Classification: Fire Test of Building Construction Materials, ANSI / UL 263: File No. CEYY.R9379
• Fire Resistance Classification (Wall Assemblies): 2-Hours or less
• Fire Resistance Classification (Floor-Ceiling Assemblies): 2-Hours or Less
• ECCN: EAR99
