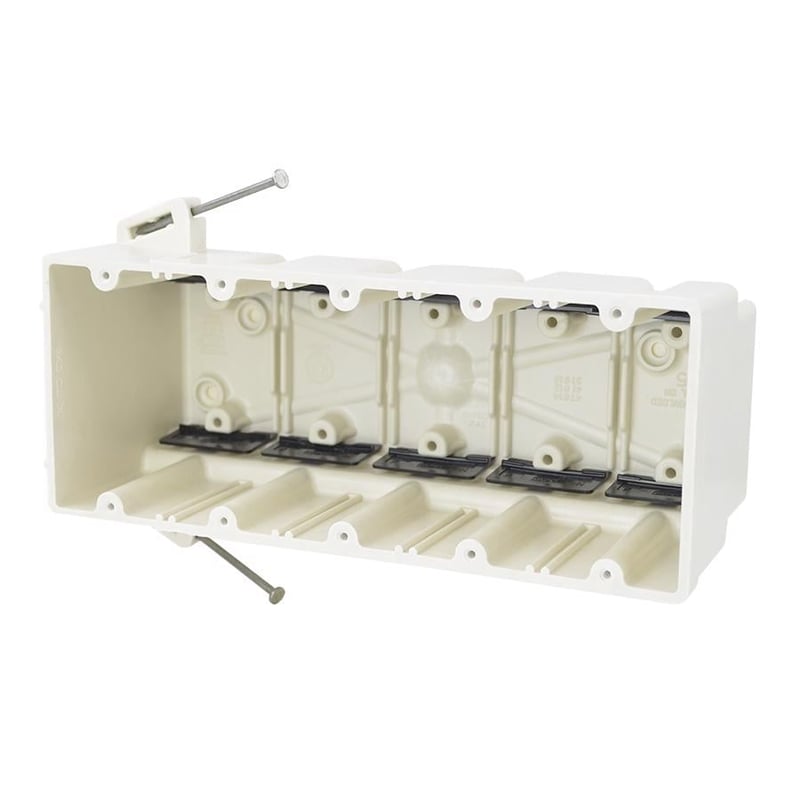

Allied Moulded Products 5305-NK 5 Gang Electrical Switch Box, New Work

Product Description

The Allied Moulded Products 5305-NK is a five gang electrical box designed for new work applications. This box is built for use with nonmetallic sheathed cable and features a cubic capacity of ninety-four cubic inches. The design includes machine tapped device holes, offset gauge marks, and leveling ribs. It is made from fiberglass-reinforced polyester, providing durability against distortion in high temperatures and resistance to shattering in low temperatures.

• Five gangs for multiple device installations
• Compatible with nonmetallic sheathed cable
• Constructed from rigid thermoset material

Product Highlights

The 5305-NK is suitable for new residential construction and can be mounted using angled mid nails. The box complies with UL 514 C safety standards.

Product Information

Standard Information

• Brand: Allied Moulded Products
• MPN: 5305-NK

Technical Specifications

• Capacity: 94.0 cu in
• Size: Depth 3 9/16 in, Width 9 7/16 in, Height 3 3/4 in
• Material: Fiberglass reinforced polyester
• Mounting Method: Angled mid nails
• Knockouts: True, with twenty no-tools knockouts
• Cable Entry: Ten Speed K Clamps factory installed
• Standards: UL 514 C
• Construction Type: Injection molded
