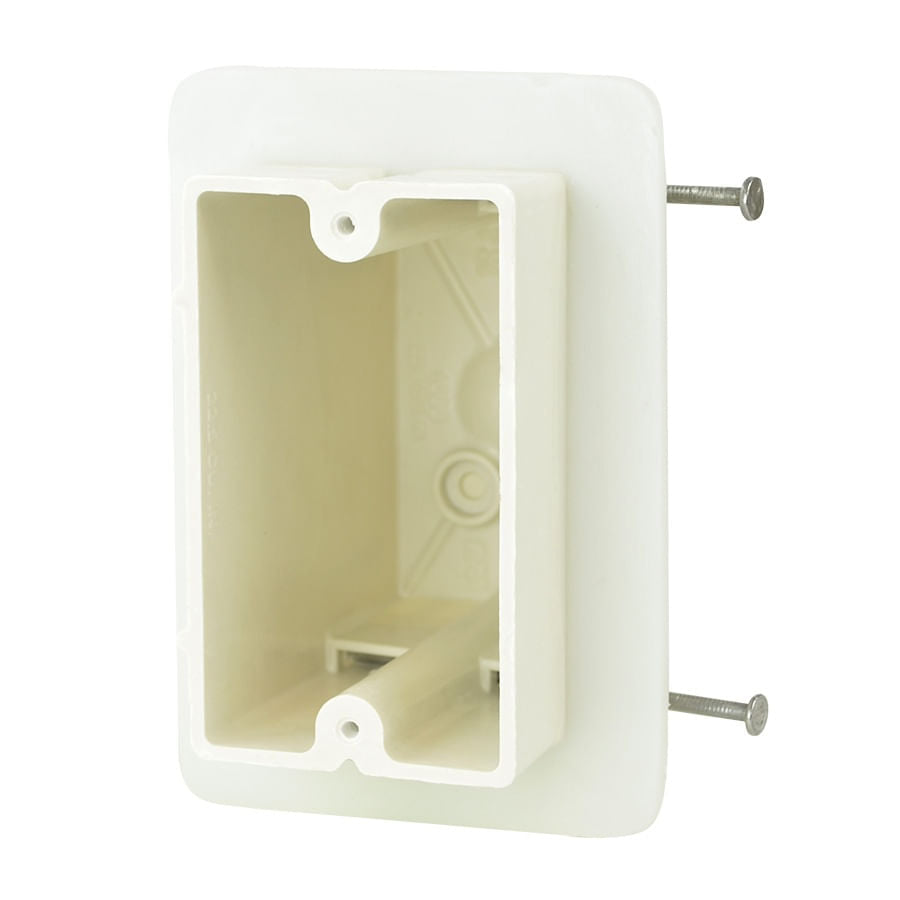

Allied Moulded Products 1099-NV2 22.5 CI 1G Air Seal Box Double Sheet Angled Mid-Nail

Product Description

The Allied Moulded Products 1099-NV2 is a 22.5 cubic inch, single gang electrical box designed for use with nonmetallic sheathed cable. It features a polyurethane flange for double drywall offset and machine tapped device holes. Constructed from fiberglass reinforced polyester, this thermoset box offers rigid construction, resisting distortion at high temperatures and shattering at low temperatures. It is suitable for new work residential construction in 2-hour fire resistive walls and ceilings, providing an air-tight seal.

• Polyurethane flange for double drywall offset
• Machine tapped device holes and leveling ribs
• Rigid hard box construction resists distortion and shattering

Product Highlights

This electrical box is air-tight, fire-resistive, and designed for new residential construction with angled mid-nail mounting.

Product Information

Standard Information

• Brand: ALLIED MOULDED PRODUCTS
• Manufacturer Part Number: 1099-NV2
• Country of Origin: United States

Technical Specifications

• Sub Brand: FIBERGLASSBOX
• Made in USA: Yes
• Application: New work residential construction 2 HR fire resistive walls & ceilings - air tight
• Cable Entry: Four "no tools" knockouts
• Construction: Injection molded
• Cubic Capacity: 22.5 cu-in
• Insulation: Nonconductive nonmetallic
• Knockouts: Yes
• Material: Fiberglass reinforced polyester - thermoset box with polyurethane flange
• Mounting: Angled Mid Nails
• Number of Outlets: 2
• Standard: UL 514 C
• Item Type: Single gang electrical box for use with nonmetallic sheathed cable
• Number of Gangs: 1
• Fire Resistance Classification in Floor-Ceiling Assemblies: 2-Hours or Less
• Distance between boxes in adjacent cavities: May be reduced to 5 inches
• Fire Test of Building Construction Materials: ANSI / UL 263: File No. CEYY.R9379
• Fire Resistance Classification in Wall Assemblies: 2-Hours or less
• Separation in Wall Assemblies: Not less than 3 inches horizontal distance
• Wall Box Standard: NEMA OS 4 - Energy Efficient Air-Sealed Boxes for Electrical Applications
• UL File Number: E30594 (ANSI/UL 514C)
• Includes: Polyurethane Vapor Seal Flange, Angled Mid-Nails, Carbon Steel Fasteners
• Series: Premier Series
• Category: Switch - Device Outlet Boxes
• UNSPSC: 39121308
• Certifications: ARRA Compliant, Buy American Act Compliant, ECCN: EAR99 Certified
• Commodity Code: Outlet Boxes - Non Metallic
• RoHS Indicator: U
