Allied Machine J1926-07-C3H Carbide Porting Insert Size 07

Product Description

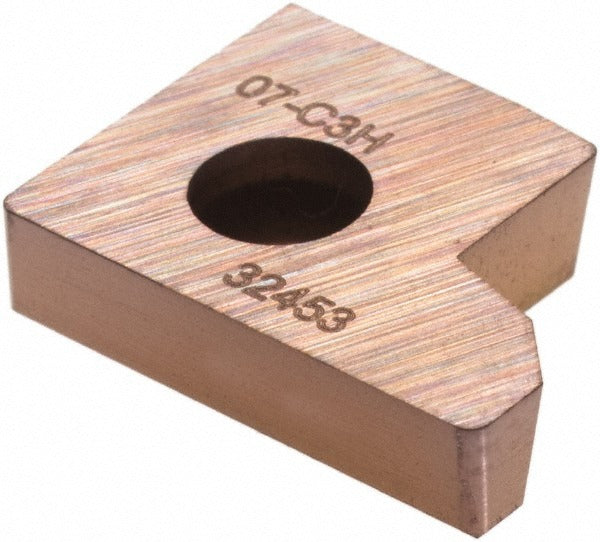

The ALLIED MACHINE AND ENGINEERING J1926-07-C3H is a carbide porting insert designed for forming threaded port geometry in hydraulic and fluid-power components. Built to the SAE J-1926 and ISO 11926-1 standards, this insert features a C3H manufacturer grade and an AM200 coating applied over solid carbide substrate. The AM200 coating improves wear resistance and extends tool life across a broad range of workpiece materials. It is used by machinists and tool-and-die professionals performing precision port-forming operations on hydraulic manifolds, valve bodies, and fluid-system housings. Package quantity is 1 insert; minimum order quantity is 2.

This insert is suited for universal workpiece material applications, including ISO material groups H, K, N, and P. Typical installations involve CNC machining centers and manual mills where SAE straight-thread or ISO-standard port geometries are required. The size 07 designation corresponds to the port dimension series defined under SAE J-1926, SAE J-2244-1, and the companion ISO 6149 standard. It is also recognized under JDS-G173.1, MS-33649, and SAE AS5202, making it applicable across aerospace, industrial, and mobile-hydraulics production environments.

Key Features

• Solid carbide construction with AM200 coating for extended tool life
• C3H manufacturer grade optimized for demanding porting applications
• Size 07 insert conforms to SAE J-1926 and ISO 11926-1 port geometry standards
• Universal primary workpiece material compatibility across ISO groups H, K, N, and P
• Recognized under multiple standards including SAE AS5202, MS-33649, and JDS-G173.1
• Sold individually per package; minimum order quantity of 2 applies

Compatibility

Designed for use in port-forming applications conforming to SAE J-1926, SAE J-2244-1, ISO 11926-1, ISO 6149, JDS-G173.1, MS-33649, and SAE AS5202 specifications. Compatible with universal workpiece materials classified under ISO material codes H, K, N, and P.

Installation Notes
