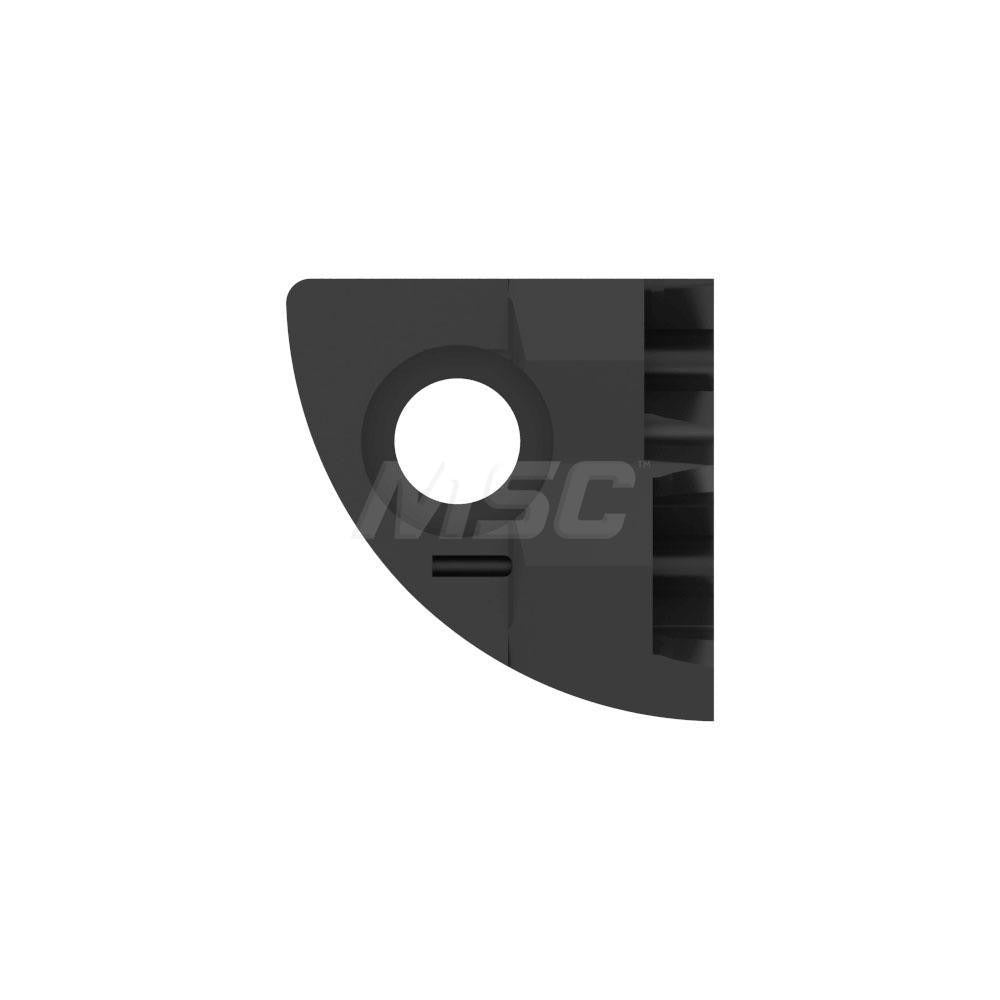

Allied Machine C34-FIX Revolution Drill Outer Cartridge

Product Description

The ALLIED MACHINE AND ENGINEERING C34-FIX is a 2-insert outer drill cartridge designed for use with the Revolution Drill series. It positions at the outer cartridge location within the drill body, holding two cutting inserts simultaneously to handle the outer cutting zone of the bore. Licensed machinists, toolroom technicians, and CNC operators install this cartridge as part of a modular indexable drilling system. The cartridge is compatible with insert size code 05T308 and conforms to ISO standards, making it a direct fit within the Revolution Drill tooling platform.

This cartridge is used in industrial machining environments where modular, indexable drill bodies are the preferred tooling strategy. It suits applications in metal removal operations such as through-hole and blind-hole drilling on CNC machining centers and lathes. The outer cartridge position handles the peripheral cutting action, and pairing it with the correct 05T308-series inserts allows the operator to select geometry for specific workpiece materials and surface finish requirements.

Key Features

• Outer cartridge location within the Revolution Drill modular body
• Accepts 2 inserts per cartridge for the outer cutting zone
• Compatible insert size code: 05T308
• Works with ten verified insert styles: OP-05T308-1H, OP-05T308-1P, OP-05T308-1T, OP-05T308-2H, OP-05T308-2P, OP-05T308-H, OP-05T308-HHR, OP-05T308-P, OP-05T308-PHR, OP-05T308-T
• Conforms to ISO standards
• Sold individually (package quantity: 1)

Compatibility

Designed for use in the ALLIED MACHINE AND ENGINEERING Revolution Drill series as the outer cartridge position. Compatible inserts are limited to 05T308-size OP-series styles: OP-05T308-1H, OP-05T308-1P, OP-05T308-1T, OP-05T308-2H, OP-05T308-2P, OP-05T308-H, OP-05T308-HHR, OP-05T308-P, OP-05T308-PHR, and OP-05T308-T.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Before swapping cartridges, ensure the spindle is fully stopped and the machine is locked out per your facility lockout/tagout procedure. Use the torque and seating guidance provided in the ALLIED MACHINE AND ENGINEERING Revolution Drill tooling manual for this cartridge location. Verify insert size code and geometry selection before returning the drill body to service.
