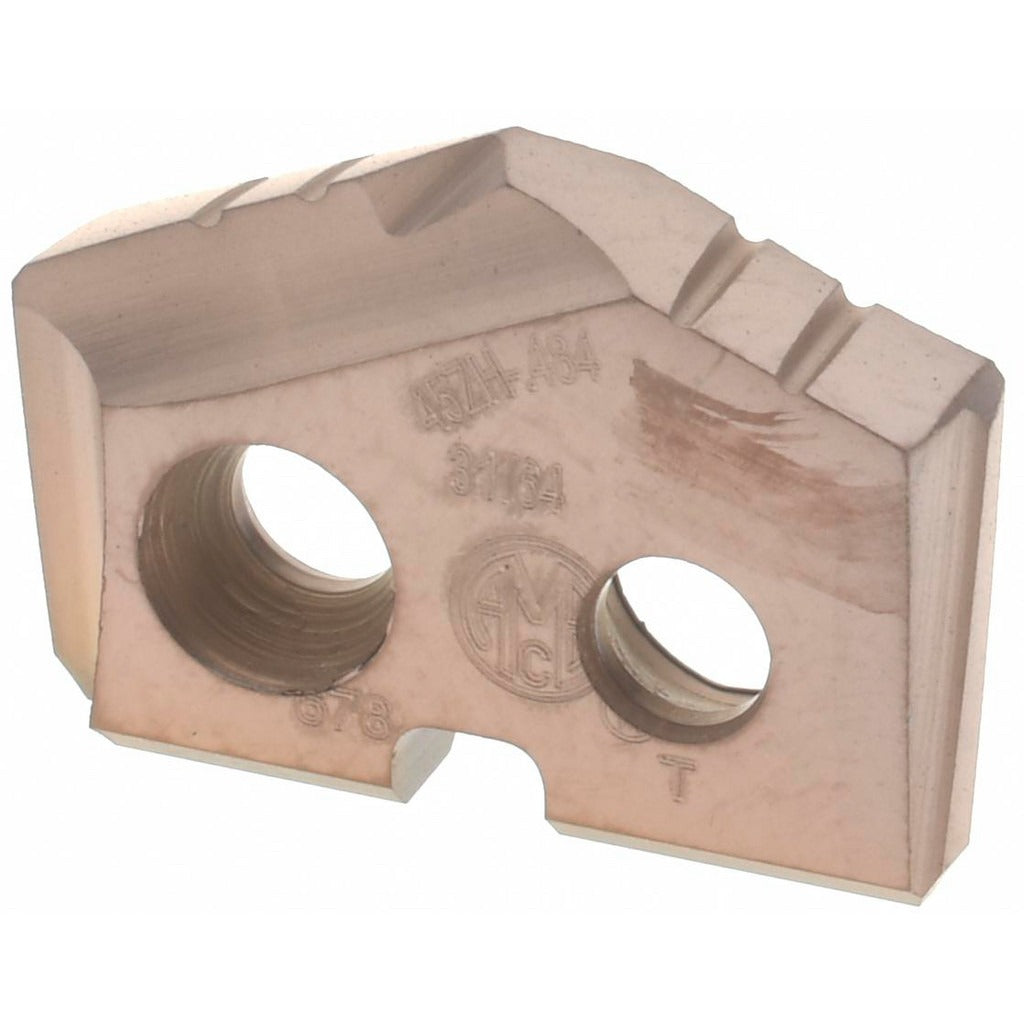

Allied Machine 45ZH-.484 Spade Drill Insert 31/64 in Cobalt

Product Description

The ALLIED MACHINE AND ENGINEERING 45ZH-.484 is a spade drill insert designed for high-performance drilling in demanding industrial applications. It features a 31/64 inch diameter, a 132-degree point angle, and a Super Cobalt substrate with an AM200 PVD coating. Seat size Z positions it within the GEN2 T-A spade drill system. The insert measures 0.0938 inches in thickness and weighs 0.1 pounds. It is installed and replaced by machinists and toolroom professionals who require consistent, repeatable performance across a range of workpiece materials.

This insert is suited for production drilling in materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials. It fits the Allied Machine GEN2 T-A spade drill holder system in Seat Size Z and is appropriate for both CNC machining centers and manual drilling operations where spade drill tooling is standard. The AM200 PVD coating provides improved wear resistance and heat management at the cutting edge, making this insert a practical choice for high-volume or interrupted-cut drilling scenarios.

Key Features

• 31/64 inch diameter with 132-degree point angle for precise entry and chip control
• Super Cobalt substrate with AM200 PVD coating for extended tool life in abrasive materials
• Seat Size Z for direct compatibility with GEN2 T-A spade drill holder bodies
• Rated for use in steel, stainless steel, cast iron, superalloys, titanium, and hard materials
• Fractional inch measurement system for straightforward sizing and replacement
• 0.0938 inch insert thickness maintains consistent seating and rigidity in the holder

Compatibility

Designed for use with Allied Machine and Engineering GEN2 T-A spade drill holder bodies accepting Seat Size Z inserts. Compatible with primary workpiece material codes P, M, K, S, and H as defined by ISO material classification, covering steel, stainless steel, cast iron, superalloys, titanium, and hard materials.

Installation Notes

Installation is performed by machinists or toolroom technicians. The machine spindle must be fully stopped and the tool secured in a vise or holder before inserting or removing the spade drill insert. Use the correct torx or hex key as specified by the holder manufacturer to seat the insert firmly without over-torquing the clamping screw. Inspect the seat and insert pocket for chips or debris before each insert change to ensure proper seating and accurate hole geometry.
