Allied Machine 45ZH-0015 Spade Drill Insert 15/32 in Cobalt

Product Description

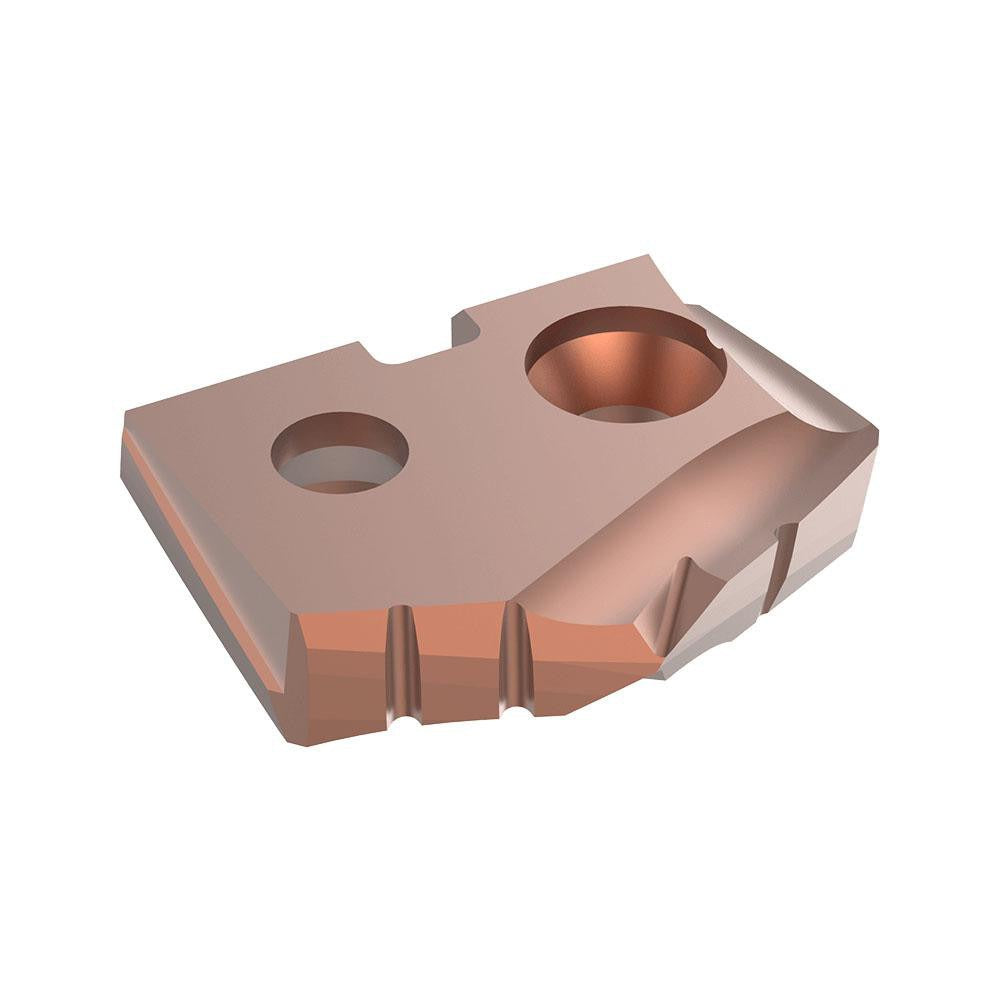

The ALLIED MACHINE AND ENGINEERING 45ZH-0015 is a cobalt spade drill insert designed for use in GEN2 T-A series spade drill holders. This insert measures 15/32 inches in diameter and features a 132-degree point angle, providing precise, stable entry geometry suited for production drilling applications. The AM200 PVD coating enhances wear resistance and heat dissipation, extending tool life in demanding cutting conditions. With a seat size of Z and a thickness of 0.0938 inches, the insert is engineered for direct replacement in compatible T-A series bodies. It is installed by machinists and tooling technicians in CNC and manual drilling operations.

This insert is intended for drilling operations on a broad range of workpiece materials including steel, stainless steel, cast iron, super-alloys, titanium, and hard materials. It is well suited for use in job shop and production environments where consistent hole quality and tool life are priorities. The GEN2 T-A series platform is a widely used modular spade drill system, and this insert slots into that ecosystem for rapid changeover without removing the holder body from the machine spindle.

Key Features

• 15/32 inch diameter with Seat Size Z for precise holder fit
• 132-degree point angle for stable, self-centering entry
• Cobalt substrate provides toughness and heat resistance
• AM200 PVD coating extends wear life on ferrous and hard materials
• Compatible with GEN2 T-A series spade drill holder bodies
• Rated for steel, stainless steel, cast iron, super-alloys, titanium, and hard materials

Compatibility

Designed for use with GEN2 T-A series spade drill holder bodies using Seat Size Z. Suitable for primary workpiece material codes P (steel), M (stainless steel), K (cast iron), S (super-alloys and titanium), and H (hard material).

Installation Notes

Installation is performed by a machinist or tooling technician. Power down and lock out the machine spindle before changing inserts. Seat the insert fully in the holder pocket and torque the clamping screw per the holder manufacturer specification using the appropriate Torx or hex key. Inspect the seating surface and clamping mechanism for wear or debris before installing a new insert to ensure proper support and runout.
