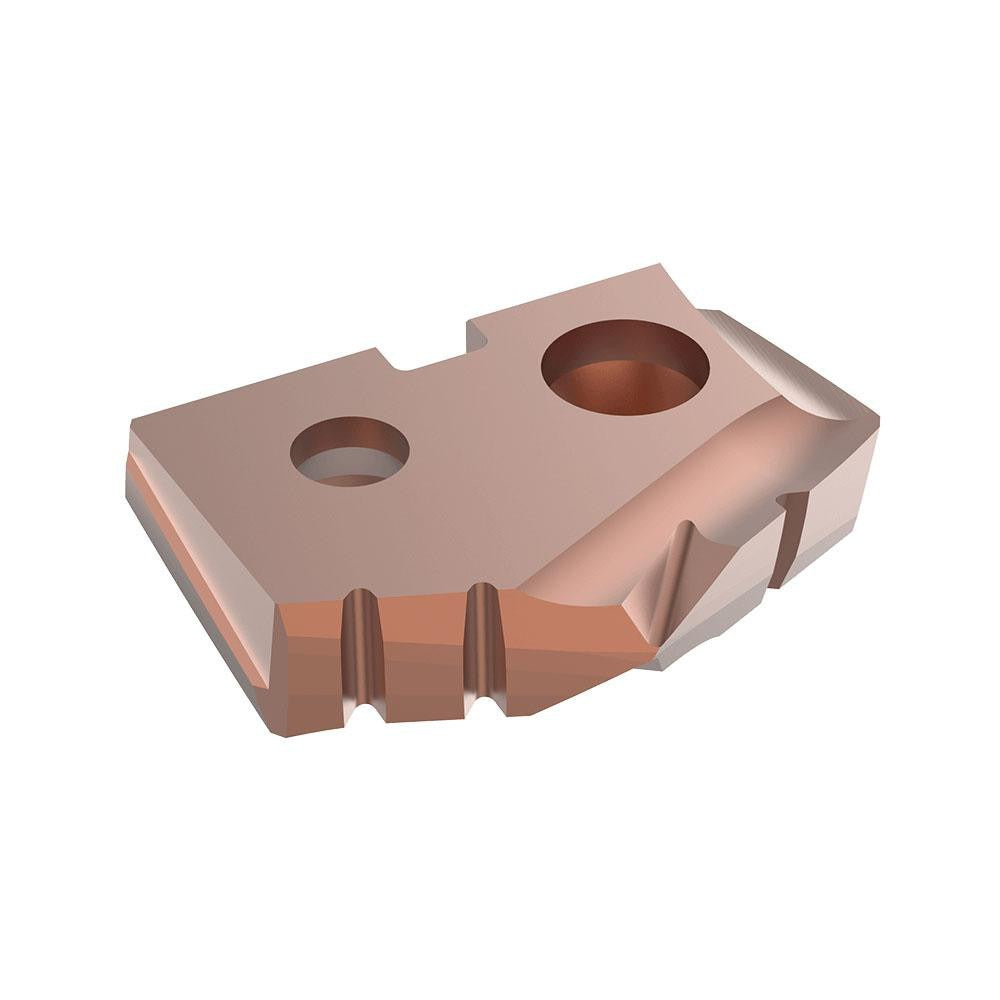

Allied Machine 450H-0022 Spade Drill Insert 11/16 in Cobalt

Product Description

The ALLIED MACHINE AND ENGINEERING 450H-0022 is a cobalt spade drill insert designed for high-performance drilling in demanding metalworking applications. This insert measures 11/16 inches in diameter and seats in a Size 0 holder. It features a 132-degree point angle and a 0.125-inch thickness. The AM200 PVD coating enhances wear resistance and extends tool life when cutting through tough workpiece materials. Licensed machinists and toolroom professionals install this insert as part of the GEN2 T-A spade drill system.

This insert is suited for production and job-shop drilling operations across a broad range of metallic workpiece materials. The GEN2 T-A series is engineered for use in CNC machining centers and manual drilling setups where interchangeable spade drill inserts are preferred over solid carbide or indexable alternatives. Typical applications include through-hole and blind-hole drilling in ferrous and non-ferrous stock.

Key Features

• Cobalt insert material provides toughness and heat resistance in interrupted cuts
• AM200 PVD coating classification improves surface hardness and reduces built-up edge
• 132-degree point angle suits flat-bottom and general-purpose drilling geometries
• 0.125-inch insert thickness fits standard Size 0 GEN2 T-A spade drill bodies
• Compatible with primary workpiece materials coded P, M, K, S, and H
• Sold individually, allowing single-insert replacement without full tool change

Compatibility

Designed for use with GEN2 T-A series Size 0 spade drill holders. Rated for primary workpiece materials including Steel, Stainless Steel, Cast Iron, Super-alloys and Titanium, and Hard Material, corresponding to ISO material codes P, M, K, S, and H.

Installation Notes

Installation and replacement should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and machine is de-energized before changing inserts. Seat the insert fully into the holder pocket and secure per the holder manufacturer torque guidance before beginning any cut. Inspect the seat and clamping surfaces for chips or debris before each insert change.
