Allied Machine 435T-0226 Spade Drill Insert 2-13/16 in Hss Tin

Product Description

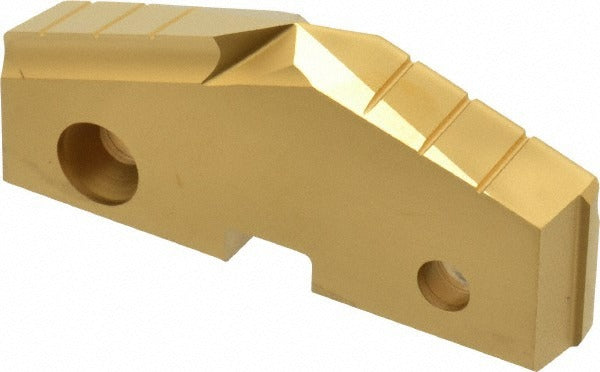

The ALLIED MACHINE AND ENGINEERING 435T-0226 is a spade drill insert designed for high-speed drilling applications in metal fabrication and machining operations. Manufactured from M4-grade High Speed Steel with a PVD-applied TiN (Titanium Nitride) coating, this insert delivers extended tool life and reduced friction at the cutting edge. It features a 2-13/16 inch cutting diameter, a 144-degree point angle, and a Seat Size 5 interface that indexes into compatible GEN2 T-A spade drill holders. At 0.4375 inches thick, the insert provides a rigid cutting platform suited to production drilling environments. Machinists and toolroom professionals install this insert as part of a modular boring and drilling system.

This insert is intended for use in GEN2 T-A series spade drill holders and is suited for drilling into steel, cast iron, and non-ferrous metals. Typical applications include through-hole and blind-hole drilling on CNC machining centers, lathes with live tooling, and manual knee mills where a large-diameter spade drill system is required. The TiN coating provides added wear resistance when running at elevated speeds in production environments. This insert is sold individually.

Key Features

• 2-13/16 inch cutting diameter for large-bore drilling applications
• M4-grade High Speed Steel construction for toughness and edge retention
• PVD TiN coating reduces friction and extends insert life
• 144-degree point angle suited for entry into steel and cast iron
• Seat Size 5 interface indexes into GEN2 T-A spade drill holders
• 0.4375 inch insert thickness provides a rigid, stable cutting platform

Compatibility

Designed for use with GEN2 T-A series Seat Size 5 spade drill holders. Compatible primary workpiece materials include steel, cast iron, and non-ferrous metals (ISO material codes P, K, and N).

Installation Notes

Installation and removal of spade drill inserts should be performed by a qualified machinist with the spindle fully stopped and the machine locked out per applicable safety procedures. Secure the insert into the holder seat using the manufacturer-specified clamping screw and verify seating before running. Inspect the insert seat and holder for chips or debris before indexing a new insert. Follow the tooling manufacturer's recommended speeds and feeds for the workpiece material and cutting diameter.
