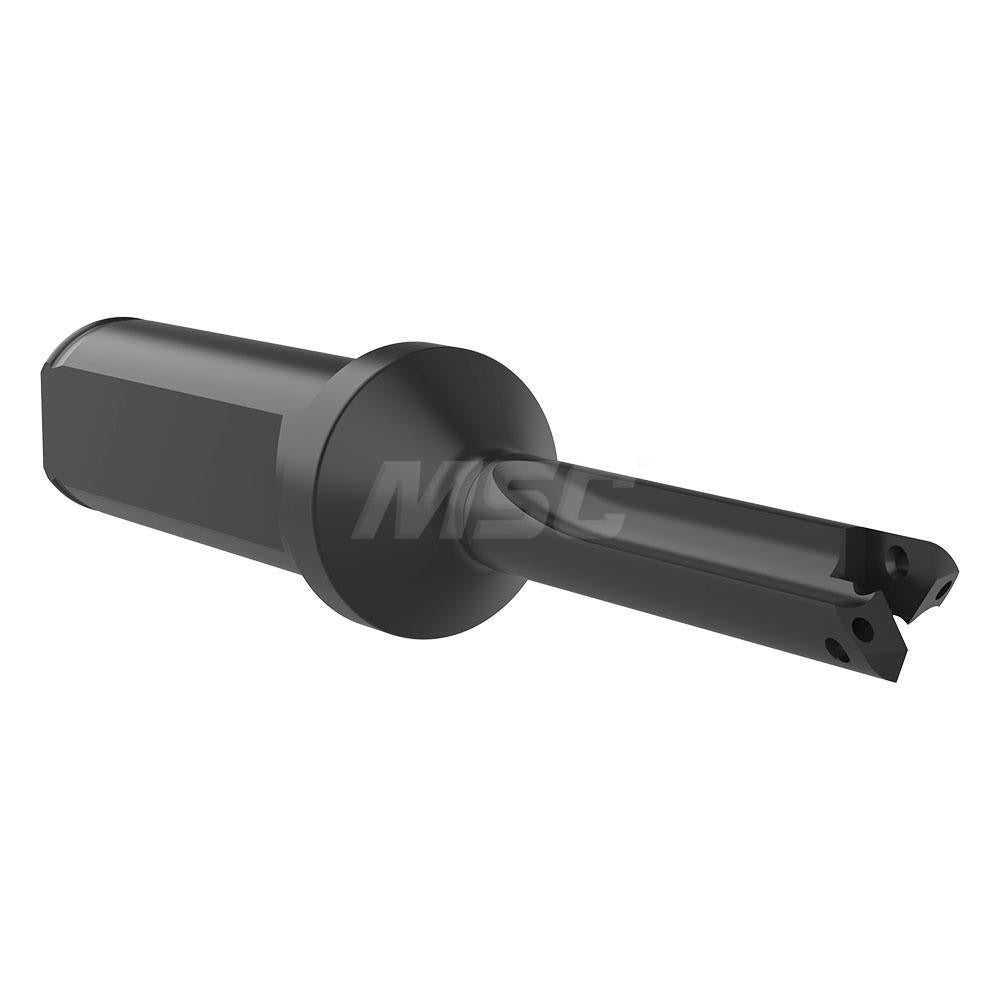

Allied Machine 220Y0S-075F Indexable Spade Drill 3/8-27/64 in

Product Description

The ALLIED MACHINE AND ENGINEERING 220Y0S-075F is an indexable spade drill designed for general-purpose hole-making in a wide range of workpiece materials. It accepts interchangeable spade blade inserts, allowing the body to be reused across multiple jobs. The drill features a straight flute geometry, through-coolant capability with axial concentric entry, and a flatted cylindrical shank measuring 3/4 inches in diameter. Maximum drilling depth reaches 1-1/4 inches. Overall length is 4-7/16 inches. This tool is installed and operated by machinists and tool-and-die technicians on CNC machining centers, lathes, and drill presses.

The 220Y0S-075F belongs to the T-A Y Series short-length indexable spade drill line. It is suited for drilling operations in universal workpiece materials including ferrous metals, non-ferrous metals, stainless, high-temperature alloys, and cast materials, corresponding to material codes H, K, M, N, P, and S. The short-length body format is well matched to rigid setups requiring minimal tool overhang and stable cutting conditions. Through-coolant delivery helps manage chip evacuation and heat at the cutting zone during production drilling.

Key Features

• Drilling diameter range of 3/8 inches to 27/64 inches accommodates close-tolerance hole sizing with appropriate blade selection
• Through-coolant support with 1/8-inch coolant hole thread size and axial concentric entry for direct coolant delivery to the cutting edge
• Flatted cylindrical shank at 3/4 inches diameter provides positive drive and resists rotation in the tool holder
• Straight flute design assists chip flow in short-depth drilling applications
• T-A Y Series indexable insert system allows blade replacement without removing the drill body from the spindle
• Short-length classification minimizes deflection in general-purpose production drilling setups

Compatibility

Designed for use with T-A Y Series spade drill blade inserts. Compatible with universal workpiece materials identified by codes H, K, M, N, P, and S, covering a broad range of ferrous and non-ferrous applications. Verify blade insert grade and geometry selection against the specific workpiece material and machine spindle requirements before installation.

Installation Notes
