Allied Machine 22005S-075L Indexable Spade Drill 39/64-11/16in

Product Description

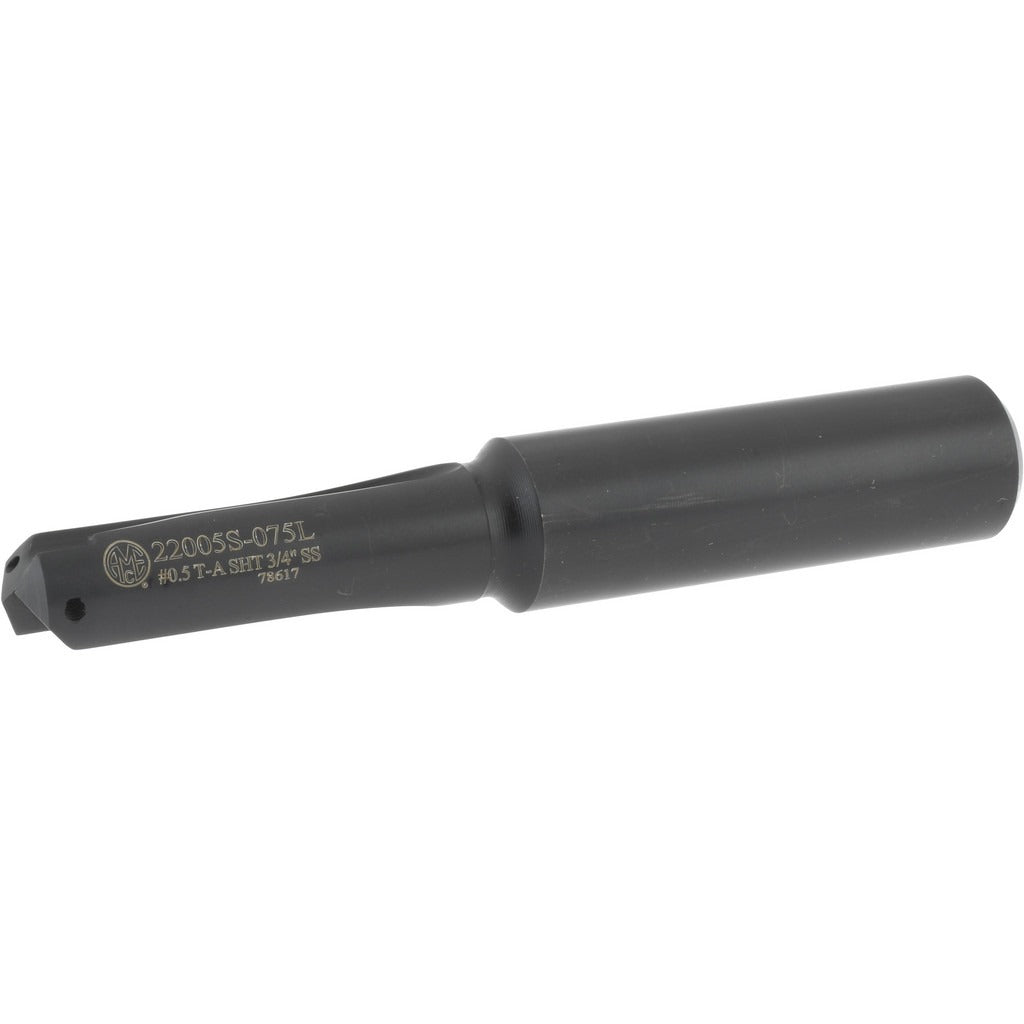

The ALLIED MACHINE AND ENGINEERING 22005S-075L is a short-series indexable spade drill designed for general-purpose hole-making in a wide range of workpiece materials. It accepts interchangeable spade drill inserts and delivers consistent bore geometry across its working diameter range of 39/64 to 11/16 inches. The tool features a straight flute configuration and axial concentric through-coolant delivery to manage heat and chip evacuation at the cutting zone. With an overall length of 4-9/16 inches and a 3/4-inch flatted shank, it mounts securely in standard drill chucks and tool holders used in machining centers and lathes.

This spade drill body is suited for production and job-shop environments where operators need reliable, repeatable drilling without the cost of solid-carbide tooling. The short-series body length keeps deflection low in setups with limited spindle clearance. Through-coolant capability makes it appropriate for deeper engagement within its 1-3/8 inch maximum drill depth rating, particularly in steels, cast irons, non-ferrous metals, and high-temp alloys. Licensed machinists and CNC operators are the primary end users for this type of tooling.

Key Features

• Diameter range of 39/64 to 11/16 inches accommodates multiple insert sizes in a single body
• Through-coolant with axial concentric entry via 1/8 inch NPT coolant hole for effective chip clearing
• Straight flute geometry for rigid cutting action and predictable chip flow
• Flatted cylindrical shank (3/4 inch diameter) resists rotational slippage in the holder
• Short-series body reduces overhang and deflection in tight-clearance setups
• Universal primary workpiece material rating covers steel, cast iron, aluminum, non-ferrous, and high-temp alloys

Compatibility

Designed for use with compatible T-A Series 0.5 spade drill inserts in the corresponding diameter range. Fits standard 3/4 inch straight-shank tool holders and drill chucks. Verify insert series compatibility before ordering replacement blades.

Installation Notes

Installation and setup should be performed by qualified machinists or CNC programmers familiar with indexable drilling tooling. Ensure the machine spindle is fully stopped and the tool holder is de-energized before mounting or removing the drill body. Confirm coolant line connections at the 1/8 inch NPT port are leak-free before running at pressure. Secure the flatted shank with appropriate set screws torqued per the tool holder manufacturer's specifications.
