Allied Machine 1C22A-0102 Spade Drill Insert 1-1/16 in Carbide

Product Description

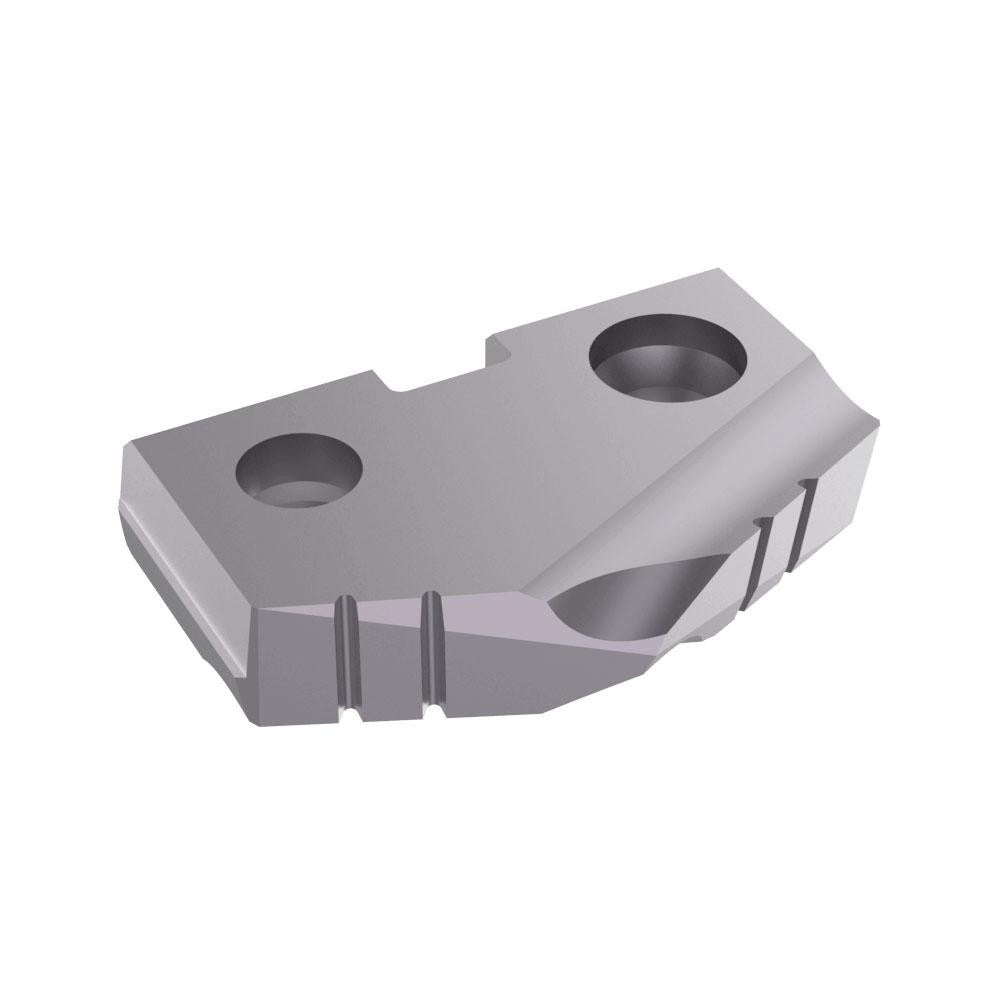

The ALLIED MACHINE AND ENGINEERING 1C22A-0102 is a solid carbide spade drill insert designed for high-performance hole-making in demanding industrial drilling applications. Measuring 1-1/16 inches in diameter with a 132-degree point angle, this insert seats into a Seat Size 2 T-A series holder. The TiAlN PVD coating provides thermal resistance and wear protection at elevated cutting speeds. At a thickness of 0.1875 inches and a weight of 0.1 pounds, it is built for precision and durability in production environments. Manufactured to grade C2 (K20), it delivers consistent performance across a wide range of workpiece materials.

This insert is suited for drilling operations in metalworking, manufacturing, and machining shops. It is designed for use in CNC machining centers, drill presses, and turning centers where replaceable insert spade drills are the tooling standard. Primary workpiece materials include stainless steel, cast iron, non-ferrous metals, super-alloys, and titanium, making it a versatile choice for job shops handling mixed-material production runs. It is installed and used by machinists, toolroom technicians, and CNC operators.

Key Features

• Solid carbide construction at manufacturer grade C2 (K20) for hardness and wear resistance
• TiAlN PVD coating for thermal stability and extended tool life at high cutting speeds
• 132-degree point angle for controlled entry and reduced thrust in hard materials
• 1-1/16 inch diameter with Seat Size 2 for use with T-A series spade drill holders
• Rated for stainless steel, cast iron, non-ferrous metals, super-alloys, and titanium
• Single-piece replaceable insert design reduces tooling downtime versus solid drills

Compatibility

Designed for use with T-A series Seat Size 2 spade drill holders. Compatible with workpiece material codes M (stainless steel), K (cast iron), N (non-ferrous metal), and S (super-alloys and titanium).

Installation Notes

Installation is performed by machinists or toolroom technicians. Power down and lock out the spindle before seating or removing the insert. Verify the holder and seat size match before installation, and inspect the seat for chips or damage that could affect insert seating and runout. Follow the toolholder manufacturer's torque guidelines for the insert screw to prevent insert movement during cutting.
