Allied Machine 10254-0300 Spade Drill Insert 3in Seat E

Product Description

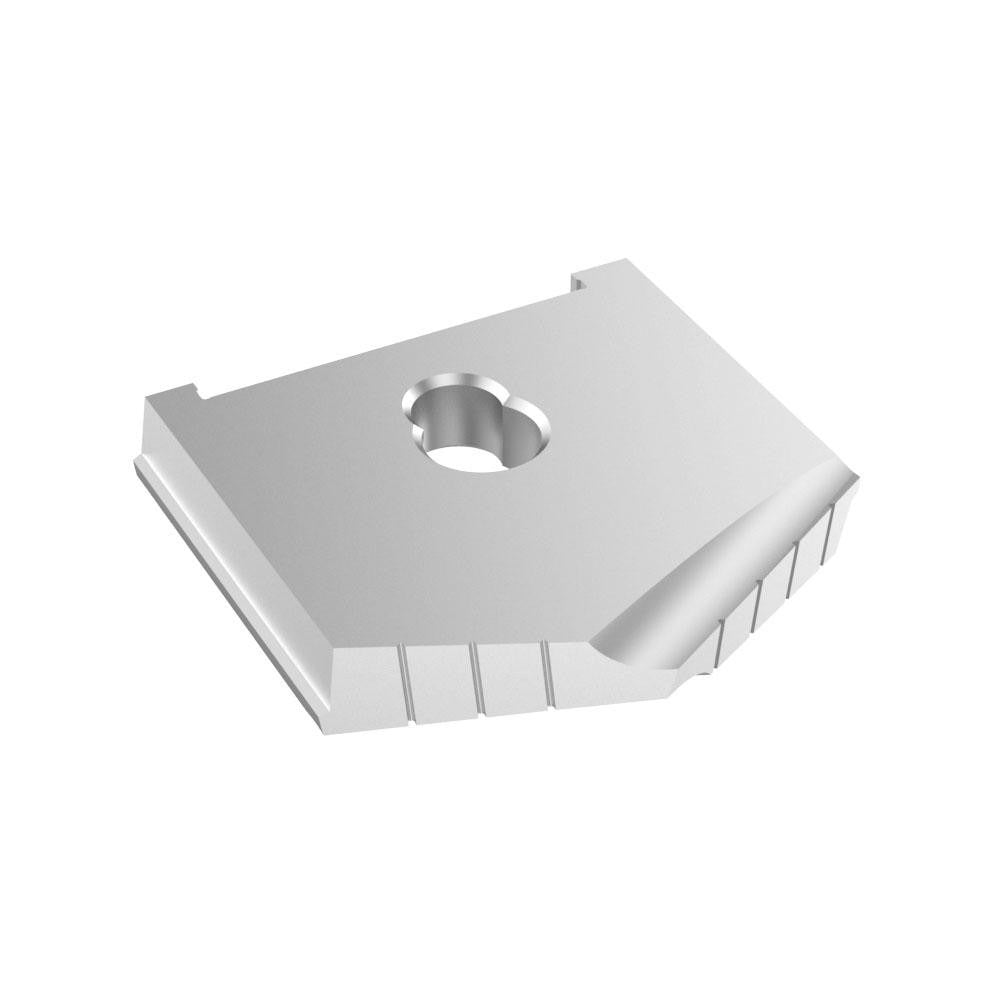

The ALLIED MACHINE AND ENGINEERING 10254-0300 is a spade drill insert designed for high-performance hole-making in a range of industrial materials. Built from CPM-M4 powdered metal, this insert delivers the wear resistance and edge toughness required in demanding production drilling applications. It features a 130-degree point angle optimized for clean entry and chip control. The insert measures 3 inches in diameter with a seat size E designation and a thickness of 0.4375 inches and a height of 2.625 inches. It ships in an uncoated finish, making it suitable for use as-is or as a base for shop-applied coatings.

This spade drill insert is intended for use in seat size E spade drill holders on manual or CNC machining centers. It is rated for drilling into steel, cast iron, and non-ferrous metals, covering ISO material codes P, K, and N. Typical applications include production drilling in job shops, metalworking facilities, and manufacturing environments where large-diameter hole-making is required without the cost of solid carbide tooling.

Key Features

• 3-inch diameter with seat size E for direct holder compatibility
• CPM-M4 powdered metal construction for high wear resistance and toughness
• 130-degree point angle for controlled entry and reduced thrust
• Uncoated finish suitable for a wide range of metalworking fluids and cutting conditions
• Rated for steel, cast iron, and non-ferrous metal workpieces
• 0.4375-inch thickness and 2.625-inch height for precise seat engagement

Compatibility

Designed for use with seat size E spade drill holders. Compatible with primary workpiece materials including steel, cast iron, and non-ferrous metals (ISO codes P, K, and N).

Installation Notes

This insert should be installed by a qualified machinist or tooling technician familiar with spade drill holder systems. Ensure the holder and insert seat are clean and free of chips or debris before seating the insert. Secure the insert per the holder manufacturer's fastener specifications and verify runout before committing to a production cut. Always follow applicable shop safety procedures and machine lockout protocols when changing inserts.
