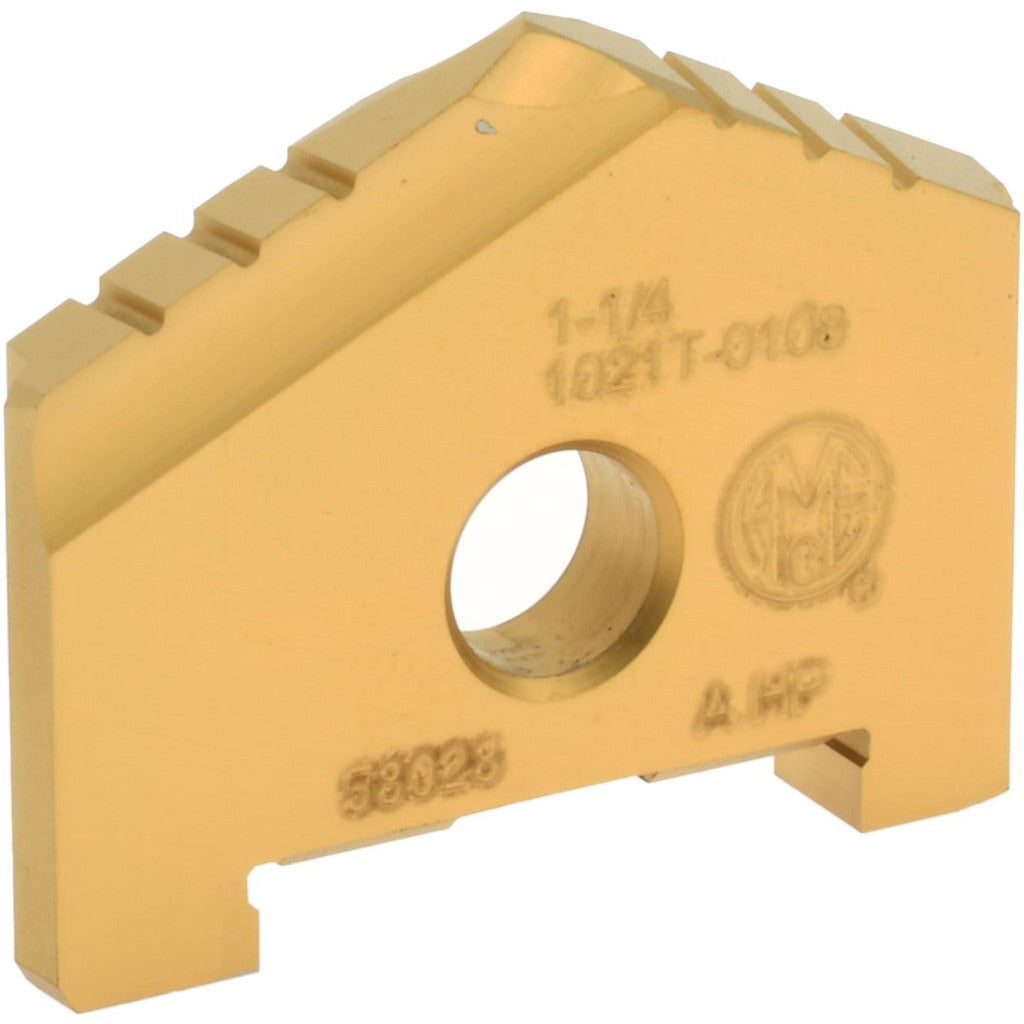

Allied Machine 1021T-0108 Spade Drill Insert 1-1/4 in Hss Tin

Product Description

The ALLIED MACHINE AND ENGINEERING 1021T-0108 is a spade drill insert designed for high-feed, deep-hole drilling operations in production machining environments. The insert measures 1-1/4 inches in diameter with a 7/8-inch height and a 0.1875-inch thickness. Constructed from high speed steel (HSS) and finished with a physical vapor deposition (PVD) titanium nitride (TiN) coating, it delivers improved surface hardness and heat resistance compared to uncoated HSS tooling. The 130-degree point angle suits general-purpose hole-making across a range of workpiece materials. This insert fits Series A seat holders and is installed by machinists and tooling technicians in CNC and manual drilling applications.

This spade drill insert is suited for drilling into steel, cast iron, and non-ferrous metals, covering ISO material codes P, K, and N. Typical applications include production runs where replaceable insert tooling is preferred over solid-body drills for cost efficiency and setup repeatability. The insert seats into a compatible Series A holder shank, allowing quick changes without removing the full drill assembly from the spindle. It is well-suited for job shop and manufacturing environments where multiple material types are encountered across shifts.

Key Features

• 1-1/4 inch diameter with 130-degree point angle for general-purpose hole geometry
• High speed steel construction provides toughness across a range of feed and speed conditions
• PVD TiN coating increases surface hardness and reduces built-up edge on the cutting face
• Series A seat size for direct compatibility with Allied Machine Series A spade drill holders
• Rated for use in steel, cast iron, and non-ferrous metal workpieces
• Replaceable insert design reduces tooling downtime and lowers per-hole cost in production runs

Compatibility

Designed for use with Allied Machine and Engineering Series A spade drill holders. Compatible with workpiece materials classified as steel, cast iron, and non-ferrous metals (ISO codes P, K, and N).

Installation Notes
