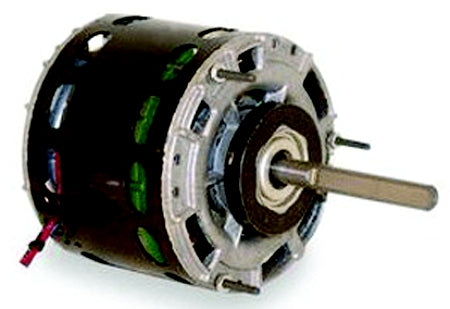

Allied K055HFZ8638011J Blower Motor 1/3 hp 115 VAC 60 Hz 1 ph

Product Description

The Allied K055HFZ8638011J blower motor is designed for use in various HVAC applications. This motor operates at one-third horsepower and is suitable for both residential and commercial settings. The motor runs on a voltage of one hundred fifteen VAC and a frequency of sixty Hz, providing reliable performance. It features a unique design that enables efficient air movement and circulation.

• Single-phase operation for easy integration.
• Built-in sleeve bearings for smooth operation.
• Permanent split capacitor design for energy efficiency.

Product Highlights

The Allied K055HFZ8638011J is ideal for condenser fan applications where reliable airflow is necessary. It features multiple speed settings for flexible performance and a durable construction that ensures longevity.

Product Information

Standard Information

• Brand: Allied Air
• Part #: L5411

Technical Specifications

• Amperage Rating: 5.1/6 A
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Dimensions: 5-5/8 in Dia x 9 in H
• Frame: 48
• Frequency Rating: 60 Hz
• Horsepower: 1/3 hp
• Number of Speeds: 4
• Phase: 1 ph
• Rotation: CCW
• Shaft Size: 1/2 in Dia x 4 in L
• Special Features: Permanent Split Capacitor Motors
• Speed: 1075 rpm
• Voltage Rating: 115 VAC
