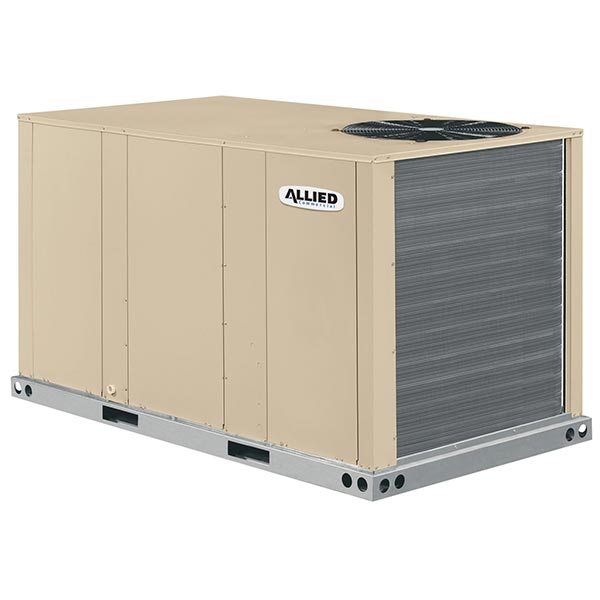

Allied Commercial CV914 KGB060S4EQ-Y 5-Ton 14 SEER K-Series Packaged Gas/Electric Rooftop Unit 208-230V-1

Product Description

The Allied Commercial CV914 is a KGB060S4EQ-Y 5-Ton 14 SEER K-Series Packaged Gas/Electric Rooftop Unit designed to provide efficient heating and cooling. This unit operates at a voltage of 208-230V with a one-phase power supply. It utilizes an R-410A refrigerant which is environmentally friendly, ensuring compliance with modern refrigerant standards. The design includes a single-speed scroll compressor and an Eco-Last Coil System that offers improved heat transfer.

• Environmentally friendly R-410A refrigerant
• Efficient direct drive ECM blower motor
• Easy field conversions for airflow direction

Product Highlights

The CV914 unit features high-pressure switches to protect the compressor and an isolated compressor compartment to allow performance checks without disrupting airflow. It is ideal for both commercial and residential applications including rapid installation and maintenance.

Product Information

Standard Information

• Brand: Allied Commercial
• Part Number: L9913

Technical Specifications

• AHRI Rated Air Flow: 1760 cfm
• Blower Type: Multi-Speed Direct Drive ECM
• Compressor Type: Scroll
• Cooling Capacity: 60900 Btu/hr
• Efficiency Rating EER: 11.0
• Efficiency Rating SEER: 14.0
• Fan Air Volume: 93.84 cu-ft
• Fan Size: 24 in
• Filters: (4) 20 x 20 x 2
• Frequency: 60 Hz
• Indoor Blower Horsepower: 1 hp
• Indoor Blower Type: ECM
• Nominal Cooling Capacity: 5 Ton
• Number of Blades: 3
• Phase: 1
• Refrigerant: R-410A
• Sound Rating: 83 dba
• Total Unit Power: 5.0 kW
• Voltage Rating: 208/230 V
