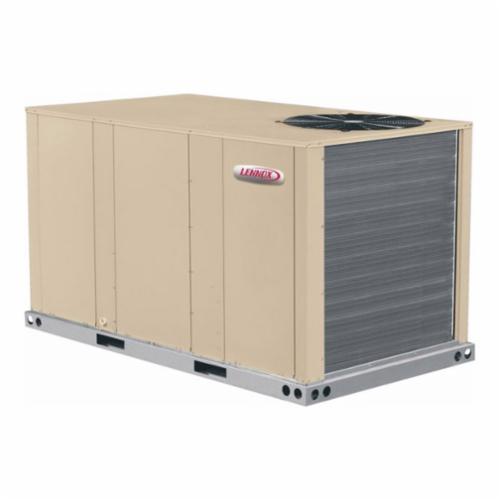

Allied Commercial AZ136 K-Series Rooftop Packaged Electric Cooling Unit With Electric Heater, 5 ton Cooling, 5 kW 460 VAC 60 Hz 3 ph

Product Description

The Allied Commercial AZ136 is a rooftop packaged electric cooling unit designed for efficient performance. This unit has a cooling capacity of five tons and integrates an electric heater with a power supply of five kilowatts, operating at 460 volts AC at sixty hertz with three phases.

• Single-zone VAV supply fan technology for optimal airflow.
• Eco-Last Coil System reduces refrigerant use by up to fifty-two percent.
• Over one hundred selectable options for quick and straightforward installation.

Product Highlights

This unit provides excellent humidity control, delivers up to sixty-one percent power savings compared to similar systems, and features a quiet operation due to its isolated compressor.

Product Information

Standard Information

• Brand: Allied Commercial
• Power Source: 5 kW 460 VAC 60 Hz 3 ph

Technical Specifications

• Cooling Capacity: 5 ton
• Dimensions: 47 inches W x 85.25 inches D x 46.875 inches H
• Efficiency Rating EER: 11.8
• Efficiency Rating IEER: 14.5
• Efficiency Rating SEER: 14
• Flow Rate: 1760 cfm
• Fuse Size: 20 A
• Material: Steel
• Compressor Type: Scroll
• Motor HP: 1/3 hp Condenser, 3/4 hp Blower
• Motor RPM: 1075 rpm Condenser
• Warranty: 5 Years
• Refrigerant Type: R-410A
• Series: K-Series
