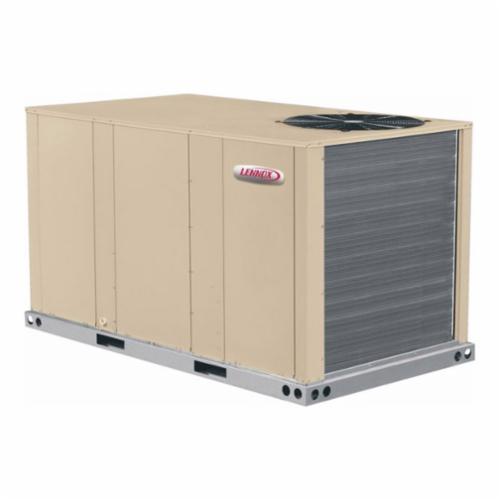

Allied Commercial AZ098 K-Series Rooftop Packaged Electric Cooling Unit 4 ton Cooling 4.1 kW 460 VAC 60 Hz 3 ph

Product Description

The Allied Commercial AZ098 is a rooftop packaged electric cooling unit with a cooling capacity of four tons. It operates on four point one kilowatts at four hundred sixty volts alternating current across three phases. The unit features an energy efficiency ratio (EER) of eleven point five.

• Variable air volume (VAV) supply fan technology
• Up to sixty-one percent power savings
• Better moisture removal for humidity control

Product Highlights

This unit is designed for single-zone applications and includes an isolated compressor for quieter operations. It has a gas compartment that is easy to access for diagnostics and serviceability, which simplifies installation and maintenance.

Product Information

Standard Information

• Brand: Allied Commercial
• Warranty: 5 Years

Technical Specifications

• Cooling Capacity: 4 ton
• Dimensions: 47 inches W x 85.25 inches D x 38.875 inches H
• Power Source: 4.1 kW, 460 VAC, 60 Hz, 3 ph
• Refrigerant Type: R-410A
• Flow Rate: 1600 cfm
• Compressor Type: Scroll
• Efficiency Rating EER: 11.5
• Efficiency Rating IEER: 14.5
• Efficiency Rating SEER: 14
• Material: Steel
• Package Weight: 568.0 lb
• Motor HP: 1/4 hp Condenser, 1/2 hp Blower
• Motor RPM: 825 rpm Condenser
