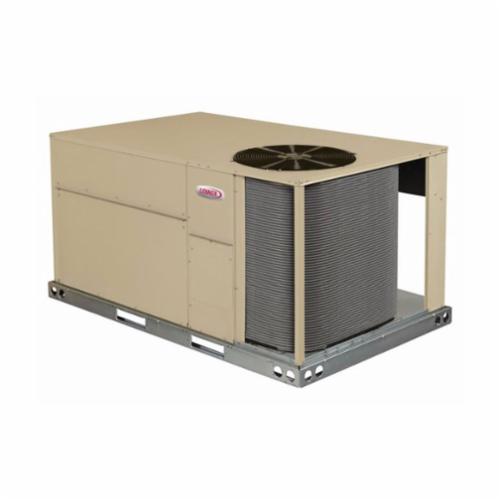

Allied Commercial AZ091 Z-Series Rooftop Packaged Electric Cooling Unit With Optional Electric Heat, 5 ton Cooling, 5.1 kW 460 VAC

Product Description

The Allied Commercial AZ091 is a rooftop packaged electric cooling unit designed for HVAC applications. It has a cooling capacity of 5 tons and operates on a power source of 5.1 kW at 460 VAC. This unit is ideal for commercial use, providing reliable electric cooling and optional heating functionality.

• Cooling capacity of five tons
• Efficient EER rating of 11.2
• Compact dimensions for easy installation

Product Highlights

This unit is designed for rooftop installation, making it suitable for various commercial settings. Its high efficiency helps reduce energy costs. The robust steel construction ensures durability and longevity.

Product Information

Standard Information

• Brand: Allied Commercial
• Type: Rooftop

Technical Specifications

• Compressor Type: Scroll
• Cooling Capacity: 5 ton
• Dimensions: 73-3/4 in W x 47-1/4 in D x 44-7/8 in H
• Efficiency Rating EER: 11.2
• Efficiency Rating IEER: 13.2
• Efficiency Rating SEER: 14
• Flow Rate: 3700 cfm
• Fuse Size: 20 A
• Material: Steel
• Mfg Standards/Approvals: AHRI Standard 210/240-2008, ASHRAE 90.1, CSA Certified, UL Listed, ULC Listed
• Motor HP: 1/4 hp Condenser, 1-1/2 hp Blower
• Motor RPM: 825 rpm Condenser
• Package Height: 44.875 in
• Package Length: 75.875 in
• Package Volume: 93.84 cu-ft
• Package Weight: 573.0 lb
• Package Width: 47.25 in
• Power Source: 5.1 kW 460 VAC 60 Hz 3 ph
• Refrigerant Type: R-410A
• Series: Z-Series
