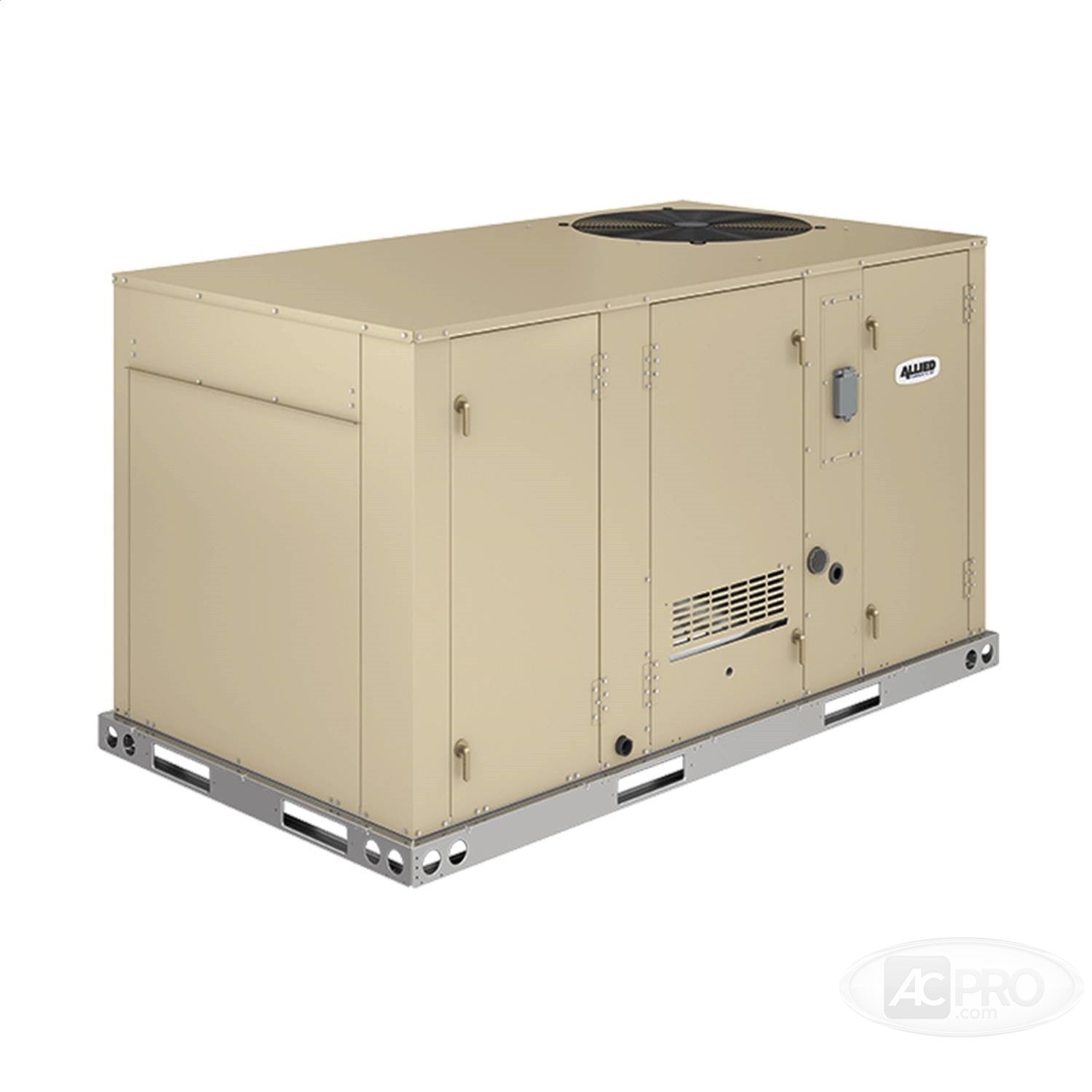

Allied Commercial AH296 K-Series Rooftop Packaged Heat Pump 58000 Btu/hr Heating 5 ton Cooling 208/230 VAC 60 Hz 3 ph

Product Description

The Allied Commercial AH296 is a K-Series rooftop packaged heat pump designed to provide efficient heating and cooling solutions. With a capacity of fifty-eight thousand BTU per hour for heating and a cooling capability of five tons, this unit operates at a power supply of 208/230 VAC at sixty Hertz with three phases. It is ideal for commercial settings seeking reliable temperature control.

• High-efficiency cooling with a SEER rating of 14
• Low noise operation with an isolated compressor design
• Durable construction and advanced humidity control technology

Product Highlights

This unit uses advanced technology for enhanced performance and energy savings. It features an Eco-Last Coil System, which reduces refrigerant use and weight, while improving moisture removal efficiency. The unit is service-friendly with accessible components for diagnostics and maintenance.

Product Information

Standard Information

• Brand: Allied Commercial
• Part Number: L9681

Technical Specifications

• Cooling Capacity: 5 ton
• Heating Capacity: 58000 Btu/hr
• Efficiency Rating SEER: 14
• Efficiency Rating EER: 11.9
• Flow Rate: 2020 cfm
• Power Source: 208/230 VAC 60 Hz 3 ph
• Refrigerant Type: R-410A
• Sound Level: 75 dBA
• Motor HP: 1/4 hp Outdoor Coil Fan
• Package Weight: 727.0 lb
• Package Dimensions: 38.875 in height x 85.25 in length x 47.0 in width
