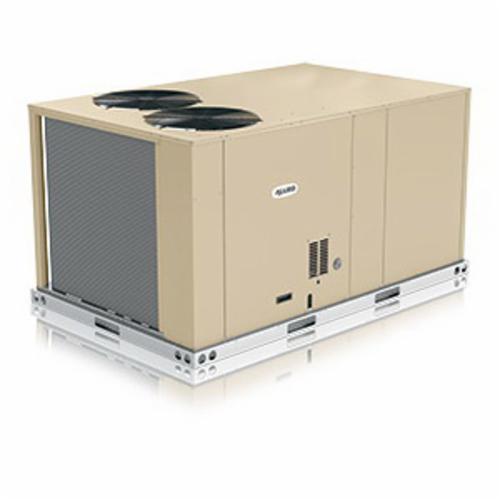

Allied Commercial AF380 Z-Series Rooftop Packaged Heat Pump 34200 Btu/hr Heating 3 ton Cooling 3.1 kW 208/230 VAC 60 Hz 3 ph

Product Description

The Allied Commercial AF380 Z-Series Rooftop Packaged Heat Pump provides efficient heating and cooling solutions. This model has a heating capacity of thirty-four thousand two hundred Btu per hour and a cooling capacity of three tons. It operates on three-point one kilowatts at two hundred eight to two hundred thirty volts, sixty hertz, and three-phase power supply.

• Matches the most popular commercial footprint
• Up to sixty-one percent power savings compared to similar units
• Includes a ten-year warranty on primary components

Product Highlights

This heat pump features tool-less access to filters for easy maintenance. The eco-last coil system uses less refrigerant and is significantly lighter than many traditional coils. Common utility connection points simplify the installation process.

Product Information

Standard Information

• Brand: Allied Commercial
• Part Number: L9689

Technical Specifications

• Cooling Capacity: 3 ton
• Heating Capacity: 34200 Btu/hr
• Dimensions: 75-7/8 inches W x 47-1/4 inches D x 36-7/8 inches H
• Power Source: 3.1 kW 208/230 VAC 60 Hz 3 ph
• Material: Steel
• Sound Level: 79 dBA
• Efficiency Rating SEER: 13
• Flow Rate: 1310 cfm
• Motor HP: 1/4 hp
• Refrigerant Type: R-410A
• Warranty: 10 years on heat exchanger, 5 years on compressor, 3 years on eco-last coil
