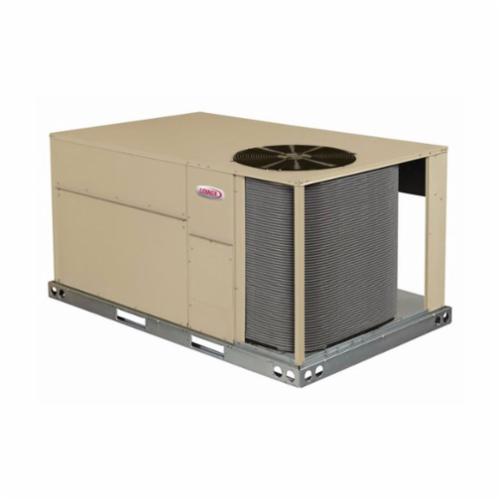

Allied Commercial AF378 Z-Series Rooftop Packaged Electric Cooling Unit With Optional Electric Heat 4 Ton Cooling

Product Description

The Allied Commercial AF378 is a Z-Series Rooftop Packaged Electric Cooling Unit with a cooling capacity of four tons. This unit is designed for commercial use and provides efficient cooling performance with the option for electric heat. The package includes an integrated blower system that enhances airflow and ensures optimal temperature regulation.

• Four ton cooling capacity
• Scroll compressor for reliable operation
• Optional electric heating available

Product Highlights

This rooftop unit is built for commercial settings where reliable cooling and heating are needed.

Product Information

Standard Information

• Brand: Allied Commercial
• Part Number: L9666

Technical Specifications

• Cooling Capacity: 4 ton
• Dimensions: 73-3/4 in W x 47-1/4 in D x 36-7/8 in H
• Material: Steel
• Compressor Type: Scroll
• Flow Rate: 3700 cfm
• Efficiency Rating EER: 11.2
• Efficiency Rating IEER: 13.2
• Efficiency Rating SEER: 14
• Power Source: 4.1 kW 208 to 230 VAC 60 Hz 3 ph
• Refrigerant Type: R-410A
• Motor HP: 1/4 hp Condenser, 1-1/2 hp Blower
• Fuse Size: 25 to 30 A
• Package Weight: 488.0 lb
• Package Volume: 93.84 cu-ft
