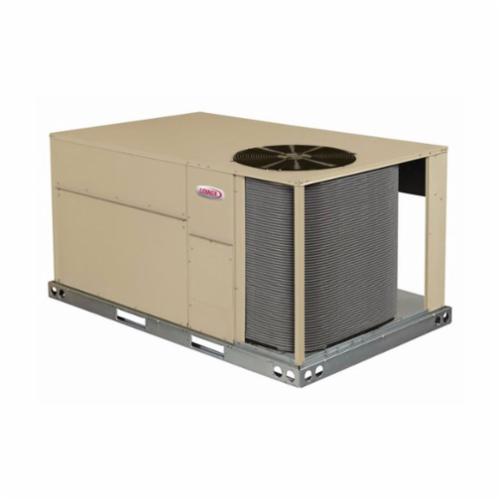

Allied Commercial AF377 Z-Series Rooftop Packaged Electric Cooling Unit With Optional Electric Heat, 3 ton Cooling, 3 kW 208 to 230 VAC 60 Hz 3 ph

Product Description

The Allied Commercial AF377 is a rooftop packaged electric cooling unit designed to provide reliable cooling for commercial applications. This model has a three-ton cooling capacity and operates on three-phase power at 208 to 230 VAC. It is equipped with optional electric heat for enhanced usability in various climates.

• Provides three tons of cooling capacity
• Compatible with 208 to 230 VAC power supply
• Includes optional electric heat functionality

Product Highlights

The AF377 is ideal for use in commercial settings where efficient and reliable cooling is needed.

Product Information

Standard Information

• Brand: Allied Commercial
• Part #: L9664

Technical Specifications

• Compressor Type: Scroll
• Cooling Capacity: 3 ton
• Dimensions: 73-3/4 in W x 47-1/4 in D x 36-7/8 in H
• Efficiency Rating EER: 11.7
• Efficiency Rating IEER: 13.2
• Efficiency Rating SEER: 14
• Flow Rate: 3700 cfm
• Fuse Size: 20 to 25 A
• Material: Steel
• Mfg Standards/Approvals: AHRI Standard 210/240-2008, ASHRAE 90.1, CSA Certified, UL Listed, ULC Listed
• Motor HP: 1/4 hp Condenser, 1-1/2 hp Blower
• Motor RPM: 825 rpm Condenser
• Package Height: 36.875 in
• Package Length: 75.875 in
• Package Volume: 93.84 cu-ft
• Package Weight: 479.0 lb
• Package Width: 47.25 in
• Power Source: 3 kW 208 to 230 VAC 60 Hz 3 ph
• Refrigerant Type: R-410A
• Series: Z-Series
• Type: Rooftop
