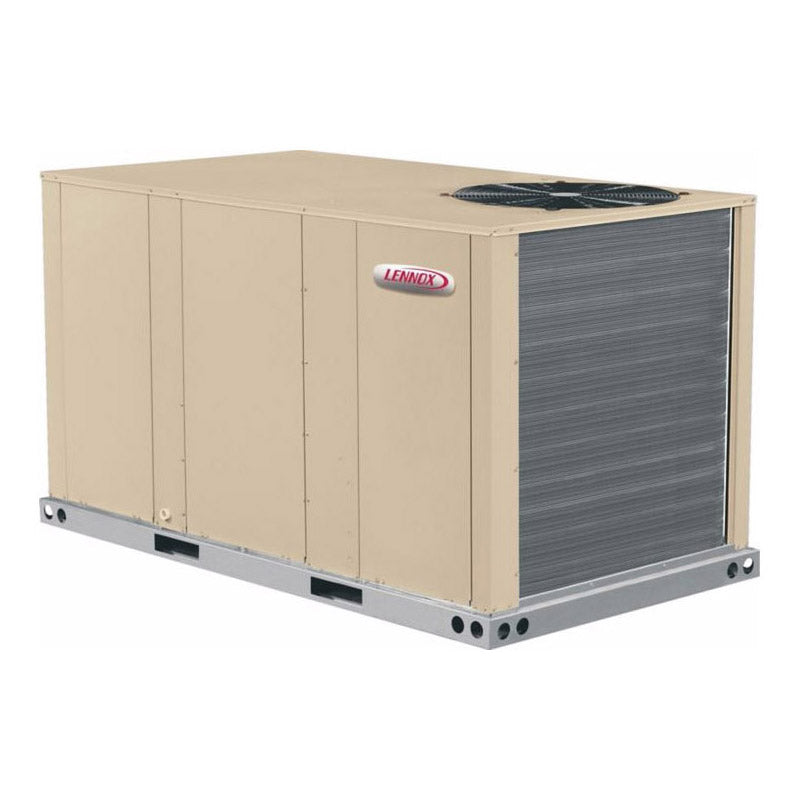

Allied Commercial AC293 K-Series Rooftop Packaged Electric Cooling Unit With Electric Heat, 5 kW, 1 ph, 14 SEER

Product Description

The Allied Commercial AC293 is a rooftop packaged electric cooling unit designed for efficient heating and cooling applications. It combines electric heat with a cooling capacity of five tons to deliver optimal climate control.

• Single-zone VAV supply fan technology ensures tailored air distribution.
• Up to sixty-one percent energy savings compared to similar units.
• Features an Eco-Last Coil System that is lighter and uses less refrigerant.

Product Highlights

This unit is engineered for reliability and performance. Its isolated compressor minimizes noise and allows for easier maintenance.

Product Information

Standard Information

• Brand: Allied Commercial
• Part #: L4829

Technical Specifications

• Compressor Type: Scroll
• Cooling Capacity: 5 ton
• Dimensions: 47 in W x 85-1/4 in D x 46-7/8 in H
• EER Rating: 11.8
• Flow Rate: 1760 cfm
• Fuse Size: 50 A
• IEER Rating: 14.5
• Material: Steel
• Mfg Standards/Approvals: AHRI Certified, ASHRAE 90.1, cETLus Listed, cCSAus Listed
• Motor HP: 1/3 hp Condenser, 3/4 hp Blower
• Motor RPM: 1075 rpm Condenser
• Motor Type: Multi-Speed Blower
• Package Height: 38.875 in
• Package Length: 85.25 in
• Package Volume: 155762.0 cu-in
• Package Weight: 661.0 lb
• Package Width: 47.0 in
• Power Source: 5 kW 208/230 VAC, 60 Hz, 1 ph
• Refrigerant Type: R-410A
• SEER Rating: 14
• Series: K-Series
• Type: Rooftop
• Warranty: 5 Years
