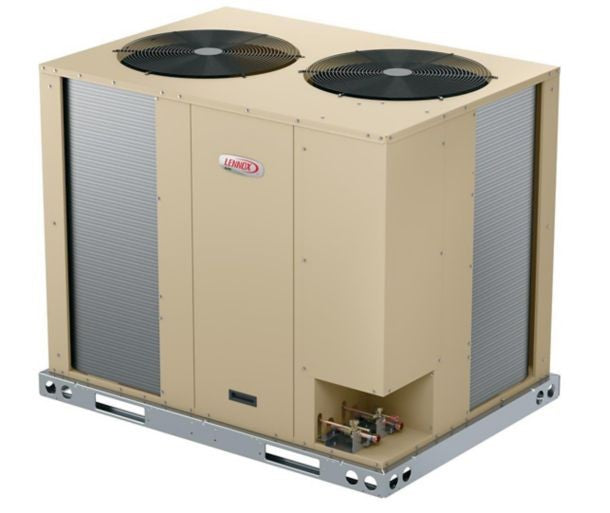

Allied Commercial 21C17 T-Series ELS Split System Air Conditioner 115000 Btu/hr Cooling 208/230 VAC 3 ph 60 Hz 47 A

Product Description

The Allied Commercial 21C17 is a T-Series ELS Split System Air Conditioner designed for commercial applications. This unit provides a cooling capacity of 115000 Btu/hr and operates on a power source of 208/230 VAC three-phase at 60 Hz.

• Proven scroll compressors ensure smooth operation.
• Easy-access panels simplify maintenance and service.
• VAV supply fan technology for efficient airflow management.

Product Highlights

This model boasts an efficiency rating of 11.2 EER, making it an effective choice for cooling needs in commercial buildings.

Product Information

Standard Information

• Brand: Allied Commercial
• Power: 115000 Btu/hr

Technical Specifications

• Application: Commercial
• Control Type: TXV
• Cooling Capacity: 115000 Btu/hr
• Dimensions: 60 in L x 42 in W x 50 in H
• Efficiency Rating EER: 11.2
• Efficiency Rating IEER: 14.3
• Flow Rate: 8300 cfm
• Line Size (Suction): 1-1/8 in
• Line Size (Liquid): 5/8 in
• Material: Steel
• Motor HP: 1/3 hp
• Motor RPM: 1075 rpm
• Mounting Type: Surface
• Nominal Capacity: 10 ton
• Motor Type: Condenser Fan
• Sound Level: 86 dB
• Warranty: 5 Years Limited Compressor, 1 Year Limited Covered Components
