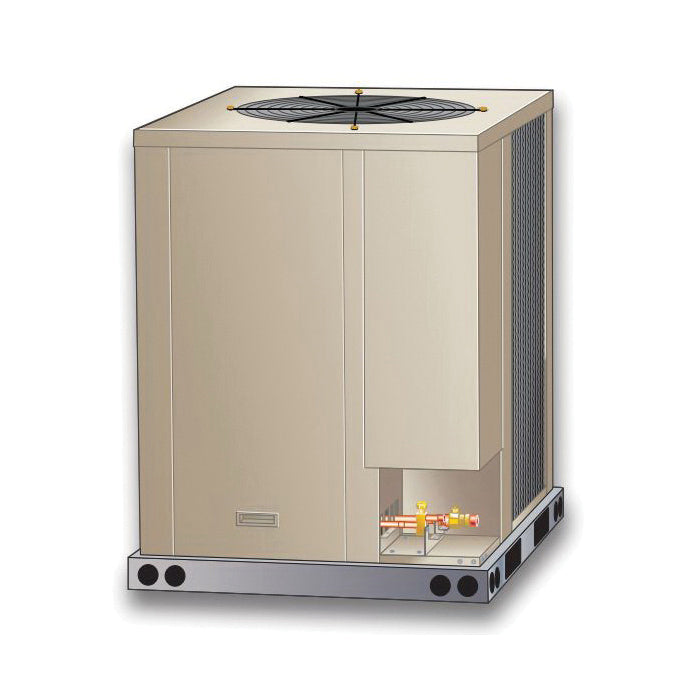

Allied Commercial 21C01 T-Series ELS Split System Air Conditioner 71000 Btu/hr Cooling 208/230 VAC 3 ph 60 Hz 24 A

Product Description

The Allied Commercial T-Series ELS Split System Air Conditioner, model 21C01, offers efficient cooling with a capacity of 71000 Btu/hr. This unit operates on a power source of 208/230 VAC three-phase at sixty hertz with a maximum current of 24 amps. Designed for commercial applications, it features a single refrigeration circuit and uses R-410A refrigerant.

• Proven scroll compressors for smooth operation
• Easy-access panels for convenient maintenance and service
• 1-zone VAV supply fan technology

Product Highlights

This air conditioner is suited for high-efficiency cooling needs, ensuring reliable temperature control in commercial spaces.

Product Information

Standard Information

• Brand: Allied Commercial
• UPC: 662551518290

Technical Specifications

• Application: Commercial
• Control Type: TXV
• Cooling Capacity: 71000 Btu/hr
• Dimensions: 48 inches L x 40 inches W x 50 inches H
• Efficiency Rating EER: 12
• Efficiency Rating IEER: 16
• Flow Rate: 4700 cfm
• Line Size (Suction): 1-1/8 inches
• Material: Steel
• Mfg Standards/Approvals: AHRI 340/360-2015 | ASHRAE 90.1 | California Code of Regulations Title 24 | ETL Listed | IECC 2015 | UL/ULC/NEC and CEC Listed
• Motor HP: 1/3 hp
• Motor RPM: 1075 rpm
• Motor Type: Condenser Fan
• Mounting Type: Surface
• Nominal Capacity: 6 ton
• Number of Speeds: 1
• Package Volume: 59.722 cu-ft
• Power Source: 208/230 VAC 3 ph 60 Hz 24 A
• Refrigerant Type: R-410A
• Series: T-Series ELS
• Sound Level: 81 dB
• Warranty: 5 Years Limited Compressor, 1 Year Limited Covered Components
