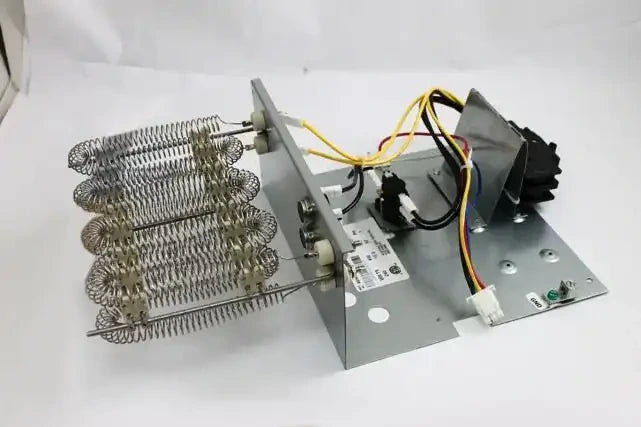

Allied Air y7645 Electric Heat Kit with Circuit Breaker 10 Kw

Product Description

The ALLIED AIR y7645 is a 10 kW electric heat kit with an integrated circuit breaker, designed to provide auxiliary electric heat in compatible air handler systems. This kit delivers consistent thermal output and is built to meet the demands of professional HVAC installations. The circuit breaker is factory-integrated, reducing field wiring complexity and supporting code-compliant installations. Weighing 8 pounds and measuring 23.5 inches in length, 16 inches in width, and 9 inches in height, the y7645 is sized for straightforward integration into supported air handler cabinets.

The y7645 is engineered for use with BCS2 series air handlers and is suited to residential and light commercial applications where supplemental electric heat is required. Typical installation scenarios include new system builds and replacement of failed heat kits in existing BCS2 installations. This kit is applicable in applications where gas heat is unavailable or where a fully electric system is specified.

Key Features

• 10 kW output provides reliable supplemental electric heat capacity
• Integrated circuit breaker simplifies wiring and supports code-compliant installations
• Designed specifically for BCS2 series air handler compatibility
• Compact dimensions of 23.5 inches by 16 inches by 9 inches for cabinet-ready fitment
• Lightweight at 8 pounds for manageable handling during installation

Compatibility

Designed for use with BCS2 18, 24, 30, 36, 37, 42, 48, and 60 ton air handlers.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler before beginning any service work. Follow applicable NEC requirements for electric heat kit wiring and overcurrent protection. Verify that the air handler cabinet and control wiring are fully compatible with this kit before energizing the system.
