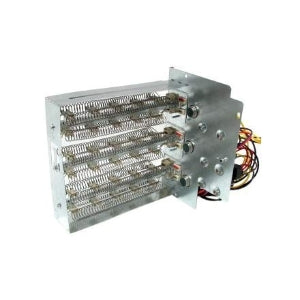

Allied Air WBC1502BV Electric Heater Kit 15 Kw 208/230V

Product Description

The ALLIED AIR WBC1502BV is a 15 kW electric heater kit with an integrated circuit breaker, designed as an OEM-style accessory for compatible air handler systems. Operating at 208/230 volts, single-phase, 60 Hz, this kit provides resistance heating capacity directly within the air handler cabinet. It is sized for residential and light-commercial applications where electric strip heat is required as the primary or supplemental heat source. Licensed HVAC technicians install this kit during new equipment commissioning or when upgrading an existing air handler with electric heat capability.

The WBC1502BV is designed for use with Allied Air Enhanced Air Handler models in the BCE5V series. It mounts within the air handler cabinet and connects to the unit control system and electrical supply. The integrated circuit breaker simplifies the electrical rough-in by eliminating the need for a separately sourced breaker component. This kit is suited to residential forced-air systems where electric heat strips are selected over a gas or heat pump backup heat strategy.

Key Features

• 15 kW heating output for effective electric strip heat delivery
• Integrated circuit breaker included, reducing additional electrical components needed at installation
• 208/230V single-phase operation for compatibility with standard residential electrical services
• 60 Hz rated for North American electrical systems
• OEM replacement kit designed to fit BCE5V-series Enhanced Air Handlers
• Compact footprint at 11.5 inches wide and 7.0 inches tall for installation within the air handler cabinet

Compatibility

Designed for use with Allied Air BCE5V-series Enhanced Air Handler models: BCE5V30, BCE5V36, BCE5V42, BCE5V48, and BCE5V60.

Installation Notes

Installation of electric heater kits must be performed by a licensed HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all electrical power to the air handler before beginning any installation work. Verify that the supply circuit ampacity and breaker sizing match the requirements specified on the equipment nameplate and installation documentation. Do not energize the unit until all electrical connections are secure and the cabinet panels are in place.

Technical Specifications

• Accessory Type: Electric Heat Kit
• Heating Capacity: 15.0 kW
• Voltage Rating: 208/230 volts
• Number of Phases: 1 Phase
• Frequency Rating: 60 Hz
• Width: 11.5 inches
• Height: 7.0 inches
• Cooling Capacity: None

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: WBC1502BV
