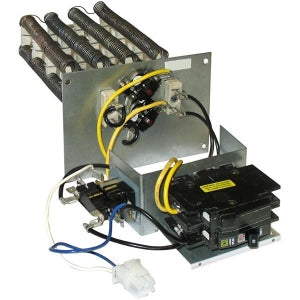

Allied Air WBC1252BV Electric Heater Kit 12.5 Kw 208/230V

Product Description

The ALLIED AIR WBC1252BV is an electric heater kit with an integrated circuit breaker, designed for installation in compatible air handler systems. Rated at 12.5 kW at 208/230 volts, single-phase, 60 Hz, this kit provides supplemental or primary electric heat to conditioned spaces served by a forced-air system. The built-in circuit breaker simplifies wiring by consolidating overcurrent protection within the kit itself, reducing the number of discrete components a technician must source and install separately. Licensed HVAC technicians install this accessory kit as part of a complete air handler configuration.

This heater kit is designed for use with enhanced air handler applications in residential settings where electric heat is the selected heating source. The kit mounts within the air handler cabinet, integrating directly into the blower and control system. The 208/230-volt, single-phase rating makes it suitable for standard residential electrical services. Verified compatible models are listed in the Compatibility section below.

Key Features

• 12.5 kW heating capacity at 208/230 volts for effective supplemental or primary electric heat
• Integrated circuit breaker eliminates the need for a separate overcurrent protection device
• Single-phase, 60 Hz design compatible with standard residential electrical service
• Factory-assembled kit format speeds field installation and reduces wiring complexity
• Compact form factor at 7.0 inches tall and 11.38 inches wide for fit within air handler cabinets

Compatibility

Designed for use with the following ALLIED AIR enhanced air handler models: BCE5V30, BCE5V36, BCE5V42, BCE5V48, and BCE5V60.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with NEC requirements and local electrical codes. Disconnect and lock out all power to the air handler at the breaker panel before beginning installation or service. Verify that the supply voltage and available ampacity match the kit rating before energizing. Do not bypass or remove the integrated circuit breaker during installation.

Technical Specifications

• Heating Capacity: 12.5 kW
• Voltage Rating: 208/230 volts
• Number of Phases: 1-Phase
• Frequency Rating: 60 Hz
• Height: 7.0 inches
• Width: 11.38 inches
• Accessory Type: Electric Heat Kit

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: WBC1252BV
