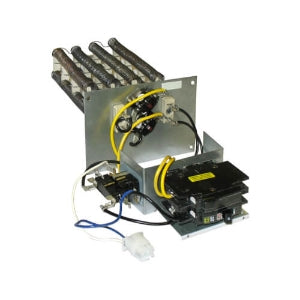

Allied Air WBC1002B Electric Heater Kit 10 Kw 208/230V

Product Description

The ALLIED AIR WBC1002B is an electric heater kit with an integrated circuit breaker, designed for forced-air HVAC systems operating on 208/230-volt, single-phase, 60 Hz power. Rated at 10.0 kW of heating capacity, this kit adds electric resistance heat to compatible air handlers or fan coil units. It is sized for residential and light commercial applications and is typically installed by a licensed HVAC technician as part of a complete heating or heat pump system. The built-in circuit breaker simplifies installation by eliminating the need for a separate disconnect device in the equipment circuit.

This electric heater kit is used in applications where supplemental or primary electric heat is required within a ducted air system. It is suited for residential installations where natural gas or other fuel sources are unavailable or impractical. The kit installs inside compatible air handler cabinets and provides consistent, reliable heat output across a range of load conditions. Installers working on heat pump systems commonly use kits like this as auxiliary or emergency heat strips.

Key Features

• 10.0 kW heating capacity for effective supplemental or primary electric heat
• Integrated circuit breaker eliminates the need for a separate disconnect device
• 208/230V, 1-phase, 60 Hz rating suits standard residential and light commercial electrical systems
• Compact footprint at 11.38 inches wide and 7.0 inches tall for easy cabinet integration
• No cooling capacity — dedicated heating accessory for use with existing cooling equipment

Compatibility

Designed as an OEM-style electric heater kit accessory for compatible ALLIED AIR air handler and fan coil unit cabinets rated for 208/230V single-phase operation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off all power to the air handler at the disconnect and main panel before handling the heater kit or any wiring. Verify that the supply circuit ampacity and breaker sizing at the panel match the kit requirements before energizing. Do not bypass or jumper the integrated circuit breaker under any circumstances.

Technical Specifications

• Heating Capacity: 10.0 kW
• Voltage Rating: 208/230V
• Number of Phases: 1-Phase
• Frequency Rating: 60 Hz
• Width: 11.38 inches
• Height: 7.0 inches
• Accessory Type: Electric Heat Kit

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: WBC1002B
