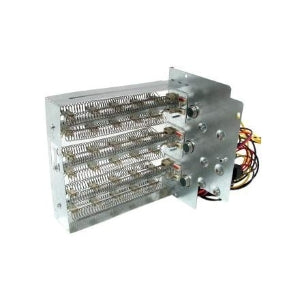

Allied Air W7C1552B Electric Heater Kit 15 Kw 208/230V

Product Description

The ALLIED AIR W7C1552B is a 15 kW electric heater kit designed for installation in compatible air handler or fan coil systems. Operating on 208/230 volts, single-phase, 60 Hz power, this accessory kit provides supplemental or primary electric heat within a forced-air HVAC system. At 15 kW, the unit delivers substantial heating output suited for residential and light commercial applications. The kit is sized at 16.0 inches wide by 8.0 inches tall, making it a compact add-on for eligible equipment. Installation is typically performed by a licensed HVAC technician as part of a new system build-out or a field upgrade to an existing air handler.

This electric heater kit is intended for use as an accessory component in forced-air HVAC systems where supplemental electric heat is required. It is suited for residential and light commercial installations where a single-phase 208/230-volt supply is available. The kit integrates into compatible air handler or package unit configurations and is commonly installed during initial system setup or as a capacity upgrade in existing equipment. No cooling capacity is provided by this component — it functions strictly as a heating accessory.

Key Features

• 15 kW heating output for effective supplemental or primary electric heat
• Compatible with 208/230-volt, single-phase, 60 Hz electrical supply
• Compact form factor: 16.0 inches wide by 8.0 inches tall
• Single-phase design simplifies wiring in residential and light commercial settings
• Accessory kit format allows field installation into compatible air handler equipment

Compatibility

Designed as an OEM-style electric heater kit accessory for compatible ALLIED AIR air handler or forced-air package unit systems requiring 208/230V single-phase electric heat.

Installation Notes

This heater kit must be installed by a licensed HVAC technician in accordance with the NEC and applicable local codes. Disconnect and lock out all electrical power to the air handler before beginning installation. Verify that the supply circuit voltage, amperage, and phase match the kit specifications before energizing. Consult the equipment manufacturer installation instructions included with the kit for torque and wiring terminal details specific to the host unit.

Technical Specifications

• Heating Capacity: 15 kW
• Voltage Rating: 208/230 volts
• Number of Phases: 1 Phase
• Frequency Rating: 60 Hz
• Width: 16.0 inches
• Height: 8.0 inches
• Accessory Type: Electric Heat Kit

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: W7C1552B
