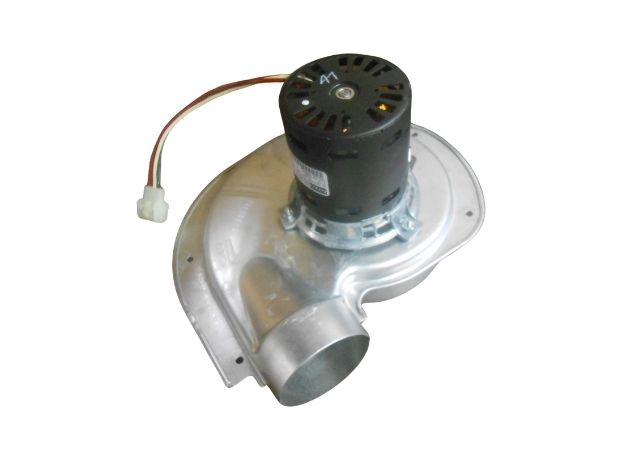

Allied Air r100642-01 Draft Inducer Blower 1.3A 2 Stage 115V

Product Description

The ALLIED AIR r100642-01 is a two-stage draft inducer blower assembly designed to exhaust combustion gases from gas-fired furnaces operating at 80% efficiency. Running on 115 volts, 60 Hz, single-phase power at 3000 RPM, it draws 1.3 amps and features a clockwise (CW) rotation with a right-hand orientation. The motor uses sealed ball bearings for reliable, low-maintenance operation. This assembly is built with a flange mounting configuration for secure installation. Licensed HVAC technicians typically handle replacement of this component during furnace servicing or heat-exchanger inspection procedures.

This draft inducer blower assembly is suited for residential 80% AFUE gas furnaces requiring a right-hand, two-stage inducer. It fits furnace cabinet size 12 applications. The flange-mount design eases alignment during reinstallation. This unit is appropriate for single-phase residential heating systems operating on standard 115-volt supply circuits.

Key Features

• Two-stage draft inducer operation for 80% efficiency furnaces
• Clockwise rotation, right-hand orientation
• Sealed ball bearings for long service life and reduced maintenance
• Flange mounting configuration for secure, aligned installation
• Runs at 3000 RPM on 115V, 60 Hz, single-phase power
• Compact footprint at 8.625 inches H x 10.875 inches W x 6.625 inches D

Compatibility

Designed as an OEM-style replacement draft inducer blower assembly for 80% AFUE residential gas furnaces with cabinet size 12 requiring a right-hand, two-stage inducer configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut off all electrical power and close the gas supply valve before removing the existing inducer assembly. Verify that the replacement unit matches the rotation direction and mounting orientation of the original before securing the flange. Refer to local mechanical codes and the furnace manufacturer service manual for proper venting and wiring procedures.

Technical Specifications

• Amperage: 1.3 amps
• Stages: 2
• Voltage: 115 volts
• Frequency: 60 Hz
• Phase: 1
• RPM: 3000
• Efficiency: 80%
• Rotation: Clockwise (CW)
• Orientation: Right Hand
• Mounting: Flange
• Bearing Type: Sealed Ball
• Height: 8.625 inches
• Width: 10.875 inches
• Depth: 6.625 inches
• Weight: 7.125 pounds
• Cabinet Size: 12

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: r100642-01
