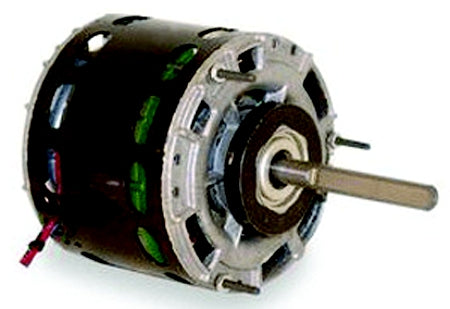

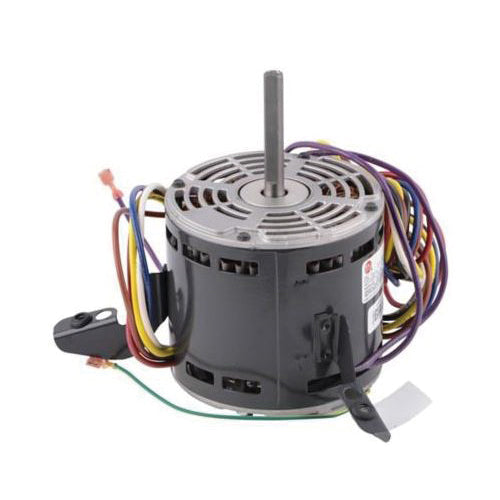

Allied Air K055HGB8639011J Motor 1/2 hp 115 VAC 60 Hz 48 Frame

Product Description

The Allied Air K055HGB8639011J Motor is a reliable choice for various applications. This motor features an open enclosure design and operates at one-half horsepower with a voltage rating of one hundred fifteen VAC. It functions on a frequency of sixty hertz and has a speed of one thousand seventy-five rpm, making it suitable for condenser fan systems.

• Open enclosure for versatile installation
• Compatible with a range of condenser fan applications
• Permanent split capacitor motor technology

Product Highlights

This motor is designed for optimal performance in indoor and outdoor installations, providing consistent airflow and efficiency. The setup includes a 48 frame, ensuring compatibility with several mounting configurations.

Product Information

Standard Information

• Brand: Allied Air
• Part Number: L5413

Technical Specifications

• Amperage Rating: 8/8.6 A
• Application Type: Condenser Fan Motors
• Dimensions: 5-5/8 inches Diameter
• Enclosure Type: Open
• Frame: 48
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Insulation Class: Class B
• Number of Speeds: 5
• Phase: 1 ph
• Rotation: CCW
• Shaft Size: 1/2 inches Diameter x 3-1/4 inches Length
• Special Features: Permanent Split Capacitor Motors
• Speed: 1075 rpm
• Voltage Rating: 115 VAC
