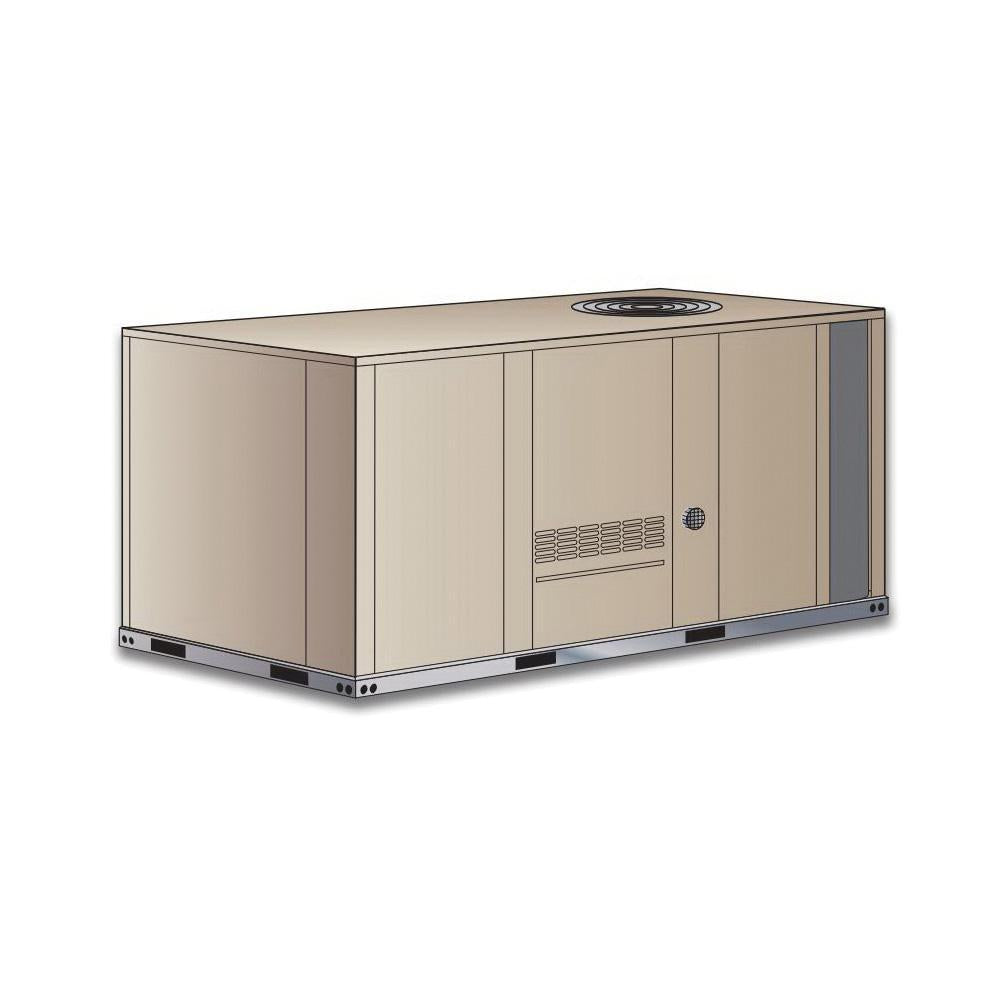

Allied Air CW115 Kgb Standard Efficiency Gas/Electric Packaged Unit With Electric Cooling 208/230 V 5 ton

Product Description

The ALLIED AIR CW115 is a KGB Model K-Series standard efficiency gas/electric packaged unit designed for commercial rooftop applications. This 5-ton unit operates on 208/230 V, 1 phase power, featuring a scroll compressor and direct drive. It provides 150,000 Btu/hr input and 121,000 Btu/hr output, with an 11 EER and 14 SEER rating. The unit utilizes R-410A refrigerant and has a downflow/vertical return air flow configuration.

• Eco Last coil system uses up to 52% less refrigerant, is up to 59% lighter and has up to 20% fewer brazed joints than regular rooftop unit coils.
• Isolated compressor for quieter operation and easier service.
• Easy to reach gas compartment for quick, simplified diagnostics and serviceability.

Product Highlights

High pressure switch guards the compressor from extreme operating conditions.

Product Information

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: CW115

Technical Specifications

• Amperage: 24.4 A
• Blower Size: 11 in Dia x 10 in W
• CFM: 1760 cfm at Cooler, 4700 cfm at Fan
• Compressor Type: Scroll
• Configuration: Downflow/Vertical Return Air Flow
• Connection Size: 1/2 in
• Connection Type: NPT
• Sound Level: 83 dBA
• Drain Connection: (1) 1 in NPT
• Drive Type: Direct
• EER: 11
• Filter Size: (4) 20 x 20 x 2 in
• Finish: Enamel Painted/Galvanized
• Frequency: 60 Hz
• Horsepower: 1 hp at Blower, 1/3 hp at Fan
• Ignition Type: Electronic Pilot
• Input BTU: 150000 Btu/hr
• Material: Steel
• Model: KGB
• Mounting Type: Rooftop
• Number of Stages: 2
• Output BTU: 121000 Btu/hr
• Phase: 1 ph
• Refrigerant Type: R-410A
• Rotational Speed: 1075 rpm
• SEER: 14
• Series: K-Series
• Thermal Efficiency: 80 %
• Tonnage: 5 ton
• Voltage: 208/230 V
• AFUE: 81 %
• Cooling Capacity: 58500 Btu/hr
• Power: 5 kW
