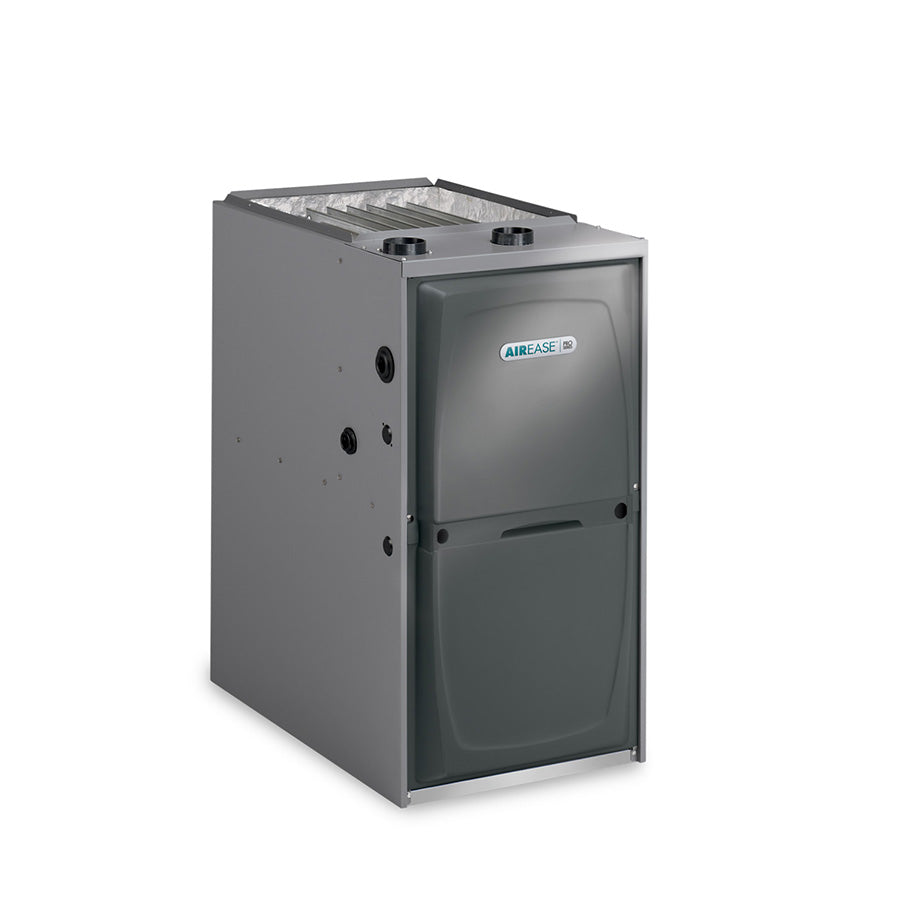

Allied Air A96DS2V090C20S Downflow Gas Furnace 90K Btu

Product Description

The ALLIED AIR A96DS2V090C20S is a two-stage, variable-speed downflow gas furnace rated at 96% AFUE. It delivers 88,000 BTU/h input and 85,000 BTU/h output, making it a high-efficiency option for residential forced-air heating systems. The ECM variable-speed blower motor maximizes airflow efficiency and reduces energy consumption compared to single-speed PSC motors. At 5 nominal tons of cooling capacity, this furnace is sized for pairing with a matched central air or heat pump system. Licensed HVAC technicians install and commission this unit as part of a complete split system.

The A96DS2V090C20S is designed for downflow applications, directing conditioned air downward through the supply duct. It operates on 120 VAC, 60 Hz, single-phase power and delivers up to 1,922 SCFM of airflow. The communicating control interface allows integration with compatible thermostats and system controls. It is compatible with R-22 and R-410A refrigerant systems and supports both air conditioning and heat pump configurations. The unit is ENERGY STAR certified, meeting federal efficiency standards for residential gas furnaces fueled by natural gas.

Key Features

• 96% AFUE two-stage gas furnace with ECM variable-speed blower for precise comfort control
• 88,000 BTU/h input and 85,000 BTU/h output with up to 1,922 SCFM airflow
• Communicating control board supports integration with compatible system controls and thermostats
• ENERGY STAR certified for compliance with high-efficiency program requirements
• Compatible with R-22 and R-410A refrigerant lines for both AC and heat pump pairings
• Downflow configuration with supply duct opening sized at 19.875 inches wide by 19.5 inches deep

Compatibility

Compatible with R-22 and R-410A air conditioning and heat pump systems. Designed as an OEM downflow gas furnace for residential forced-air systems requiring a 5-ton nominal cooling match and communicating system capability.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Shut off all electrical power and gas supply to the system before beginning any service or installation work. Verify proper flue venting configuration and gas line sizing before commissioning. Do not operate the unit without confirming all duct connections, condensate drains, and electrical connections are complete and secure.

Technical Specifications

• AFUE: 96%
• Input Capacity: 88,000 BTU/h
• Output Capacity: 85,000 BTU/h
• Nominal Cooling Capacity: 5 tons
• Nominal CFM: 1,922 SCFM
• Voltage: 120 VAC, 60 Hz, 1-Phase
• Motor Type: ECM Variable Speed
• Configuration: Downflow
• Stages: Two Stage
• Fuel Type: Natural Gas
• Width: 21 inches
• Depth: 28.5 inches
• Height: 33 inches
• Supply Duct Width: 19.875 inches
• Supply Duct Depth: 19.5 inches
• Weight: 164 pounds
• ENERGY STAR Certified: Yes

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: A96DS2V090C20S
