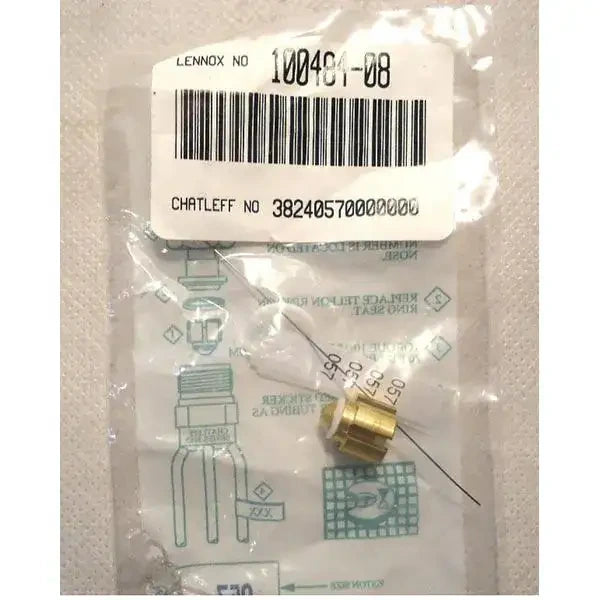

Allied Air 97m75 Fixed Orifice Piston Kit 0.057 Inch

Product Description

The ALLIED AIR 97m75 is a factory-engineered indoor unit fixed orifice kit designed to meter refrigerant flow in residential heating and cooling systems. This kit includes a 0.057-inch fixed orifice, a fixed orifice extractor, a PTFE ring, and a fixed orifice sticker, giving technicians everything needed for a complete replacement in a single package. Precise orifice sizing is critical to maintaining correct refrigerant metering, system efficiency, and proper superheat. Licensed HVAC technicians handling maintenance calls, component replacements, or seasonal tune-ups will find this kit straightforward to install and sized to factory spec.

This fixed orifice piston kit is engineered for use with Armstrong and Concord heating and cooling systems, specifically the Elite XC14 Series Air Conditioner refrigerant flow control circuit. It is suited for residential split-system applications where a fixed orifice metering device is used in place of a TXV. Contractors working on Armstrong Air and Concord equipment will recognize this as the correct OEM-style replacement for restoring proper refrigerant circuit performance.

Key Features

• 0.057-inch fixed orifice for precise refrigerant metering
• Complete kit includes fixed orifice, extractor tool, PTFE ring, and identification sticker
• PTFE ring included for a reliable, leak-resistant seat seal
• Factory-engineered to OEM specifications for Armstrong Air and Concord systems
• Compact and lightweight at 0.05 pounds for easy field handling

Compatibility

Designed for use with Armstrong and Concord Elite XC14 Series Air Conditioner refrigerant flow control systems.

Installation Notes

Installation should be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Recover all system refrigerant and confirm the system is fully depressurized before removing or installing any metering device components. Use the included fixed orifice extractor to remove the existing orifice without damaging the seat. Wrap the PTFE ring as directed and confirm the orifice is fully seated before recharging the system.
