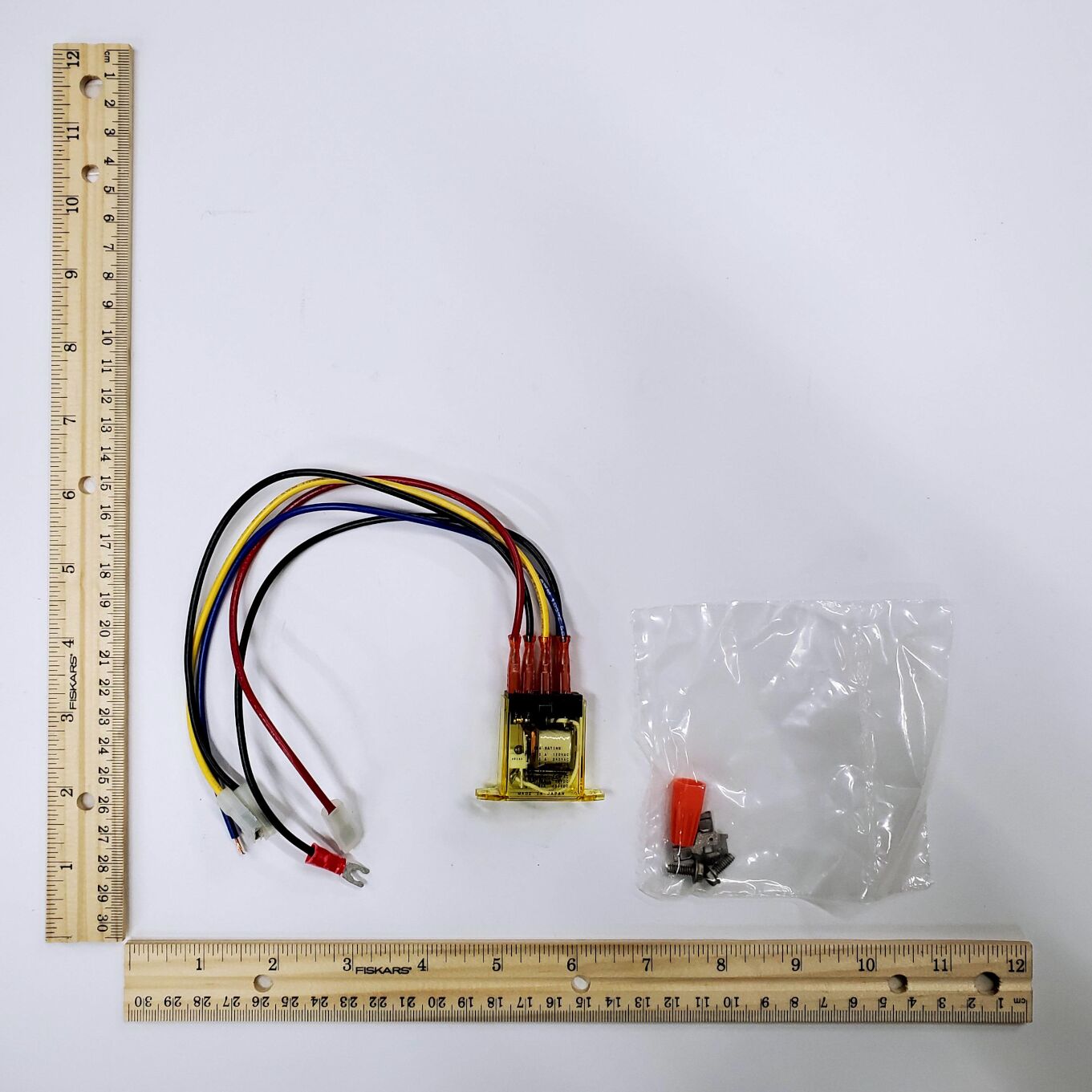

Allied Air 85w66 2-stage Compressor Relay Kit

Product Description

The ALLIED AIR 85w66 is a 2-stage compressor relay kit designed for use in residential and light commercial HVAC systems. This relay kit provides the switching control necessary to sequence compressor staging operations, allowing the system to modulate capacity based on load demand. It is a direct-service component installed by licensed HVAC technicians during system repair or maintenance when the original relay assembly has failed or requires replacement.

This kit is suited for 2-stage cooling or heating systems where staged compressor operation is required for efficiency and comfort control. It is typically installed in the control circuit of a split-system or packaged unit that uses two-stage compressor sequencing. The kit format means all necessary relay components are included for a complete service replacement.

Key Features

• 2-stage compressor relay configuration for staged capacity control
• Kit format includes components needed for a complete relay replacement
• Designed for control circuit integration in residential and light commercial HVAC equipment
• Enables proper compressor staging sequencing during system operation

Compatibility

Designed as an OEM-style replacement relay kit for 2-stage compressor HVAC systems. Refer to the equipment service manual or consult Allied Air documentation to confirm fitment for a specific unit before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the unit at the disconnect switch and verify voltage is absent with a meter before handling any control components. Follow applicable NEC requirements for low-voltage control wiring. Consult the equipment wiring diagram before removing or reconnecting relay terminals to ensure correct circuit restoration.

Technical Specifications

• Configuration: 2-Stage Compressor Relay Kit

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 85w66
