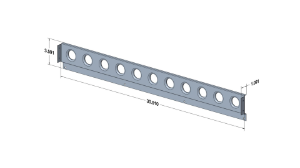

Allied Air 77M08 Corbel Plate 1x4x31 in

Product Description

The ALLIED AIR 77M08 is a corbel plate designed to provide structural support and proper alignment in HVAC system installations. This accessory serves as a mounting or bracketing component, used to secure equipment or structural elements during system assembly or installation. Measuring 1 inch in height, 4 inches in width, and 31 inches in length, the 77M08 is sized for standard residential and light commercial HVAC applications. Licensed HVAC technicians and installers use corbel plates as part of equipment mounting assemblies to ensure rigid, level support.

This corbel plate is suited for use in HVAC installation projects where additional structural support is required at mounting points. It is used in both new construction and retrofit installations. The 31-inch length makes it appropriate for spanning typical framing or equipment mounting widths encountered in residential systems. It is installed by qualified HVAC technicians as part of a broader equipment assembly rather than as a standalone component.

Key Features

• Compact profile at 1 inch height for low-clearance mounting applications
• 31-inch length provides extended span for equipment support
• 4-inch width offers a stable bearing surface
• Designed as an HVAC accessory component for structural mounting use

Compatibility

Designed as an OEM-style accessory corbel plate for use in HVAC equipment mounting assemblies where this component is specified.

Installation Notes

Installation should be performed by a qualified HVAC technician following all applicable local mechanical codes. Disconnect and lock out all power to the system before beginning any installation or service work. Ensure all fasteners and mating surfaces are secure and properly aligned before returning the system to operation.

Technical Specifications

• Accessory Type: Corbel Plate
• Height: 1 inch
• Width: 4 inches
• Length: 31 inches

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 77M08
